Plinth for concrete plinths

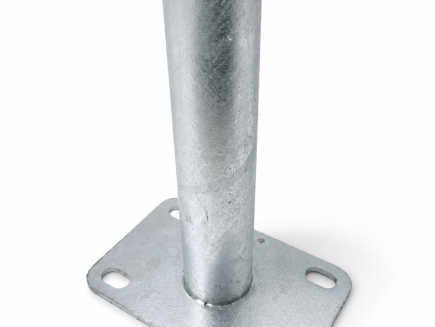

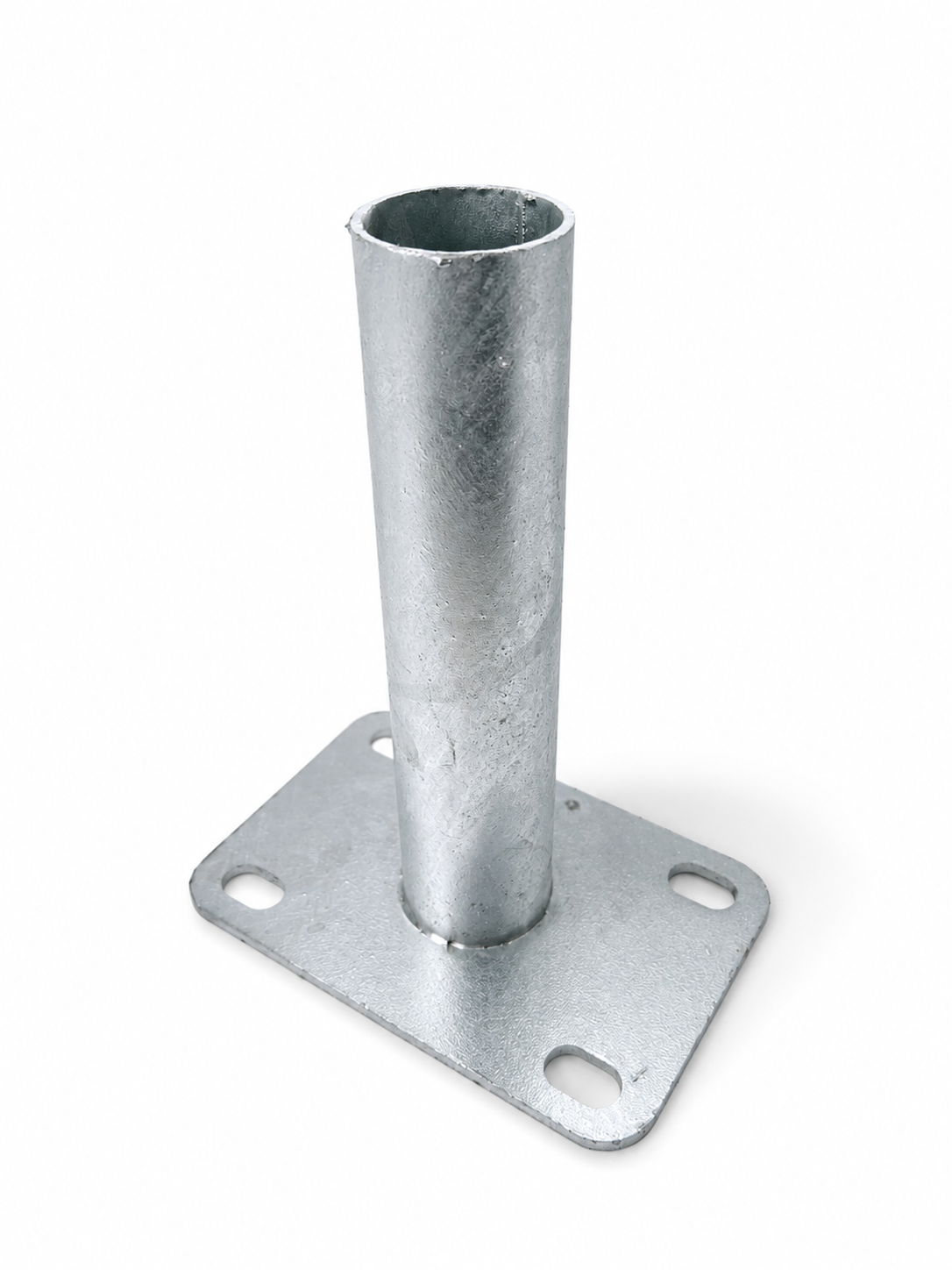

Pedestal with a mandrel for attaching the posts of the 60x60mm profile . It is used in the installation of Turbolinea posts with a diameter of 48 mm without the need to break the solid surface and without the need to concrete the post.

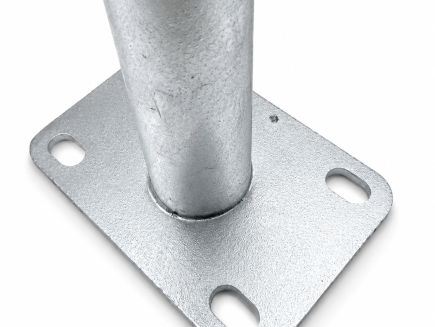

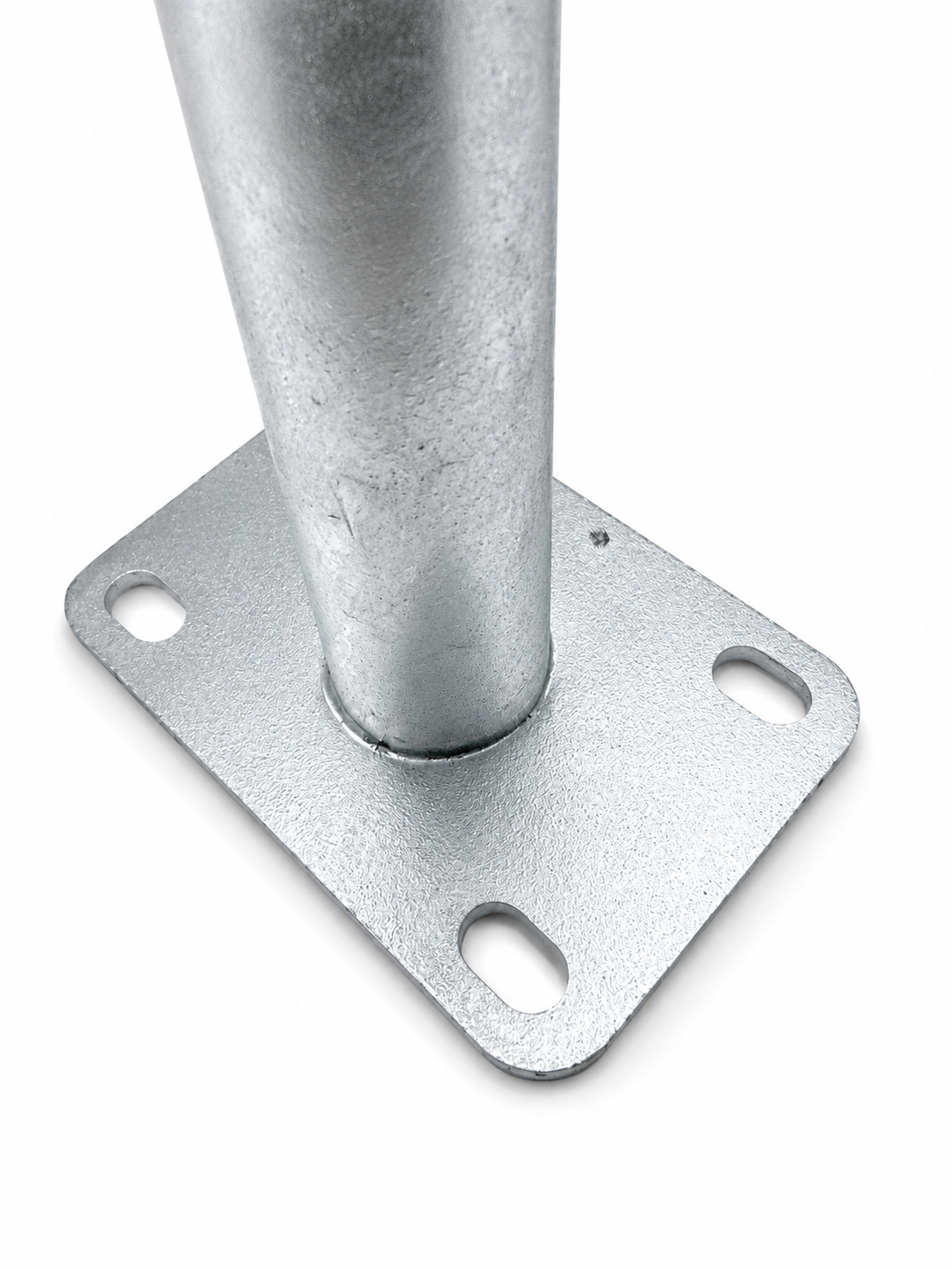

The size of the base plate of the pedestal is 10 x 15 cm , the pedestal is made and welded from solid materials and then hot-dip galvanized as a whole. In the corners of the base plate there are four holes with a diameter of 13 mm for attaching the base with a dowel or chemical anchor to concrete slabs . The post is attached by placing the square post on the spike of the base and securing it with two self-tapping screws. Fasteners are not included (we recommend steel dowels 10 or 12 mm, hardened turbo screws or assembly using chemical anchors).

Ideal for the construction of protective frames in halls or fencing in parking lots , etc... If the post is longer by the unused part of the length intended for concreting, we recommend shortening the post with a saw.
