Price A (over 0 ks): 7,41 € without VAT (=8,97 € with VAT)
Price B (over 19 ks): 7,17 € without VAT (=8,68 € with VAT)
Price C (over 49 ks): 7,05 € without VAT (=8,53 € with VAT)
Price D (over 99 ks): 6,71 € without VAT (=8,12 € with VAT)
Online calculator for immediate fence calculation
Catalog number: 23010

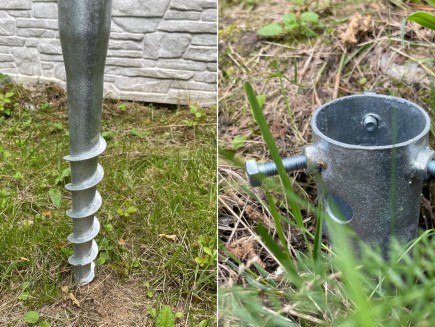

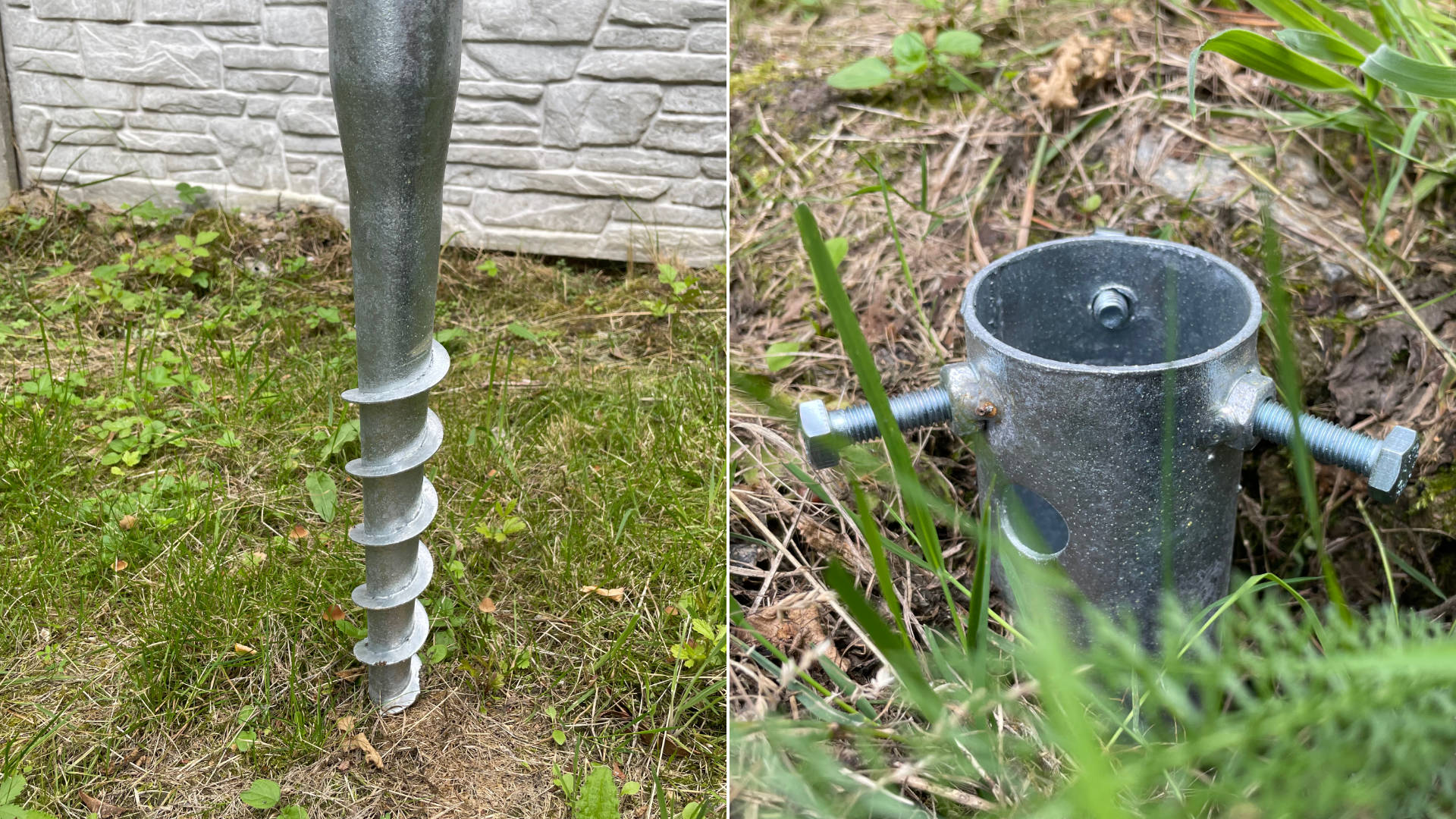

Massive screw with a wall of 2 mm and a length of 800 mm, diameter 70 mm, for greater durability and resistance, the surface of the screw is thickly galvanized.
Ground screw for mounting posts (diameter 38 mm, 48 mm, 60 mm and gates) without the need for earth excavation and concreting. The screw is especially advantageous when installing a smaller number of posts or in periods of climatically unstable weather (without the need to wait for the concrete to harden, etc.). The advantage of the screw in the ground is the possibility of its removal when removing or moving the fence (also suitable, for example, for clothes dryers or pergolas).
The verticality correction of the column can be sensitively regulated with three adjusting screws in the upper part of the screw.
Choose a suitable post and its length according to the data on inserting the post into the screw:
dia. 38mm - can be inserted 54 cm
dia. 48mm - 38cm can be inserted
dia. 60mm - 34cm can be inserted
steel post 60 x 40mm - cannot be inserted
steel post 60 x 60mm - cannot be inserted
The installation of the screw into the ground is carried out using a rod (not part of the product) dia. 18 - 20 mm, approx. 120 cm long, which is inserted into the hole in the upper part of the post and by turning, the screw is drilled into the ground as much as possible. For larger quantities, you can purchase a manual cross for easier assembly (see accessories).
Please note that the screw cannot be used on stony substrates, concrete surfaces, asphalt surfaces. The advantage is the possibility of removing the screw when removing or moving the fence.
When using this screw, it is necessary to cut the lower part of the post and adjust the length of the post to the required mesh height.
The set screw is not a screw.
