Gate asymmetry. 125cm x 100+180cm FAB

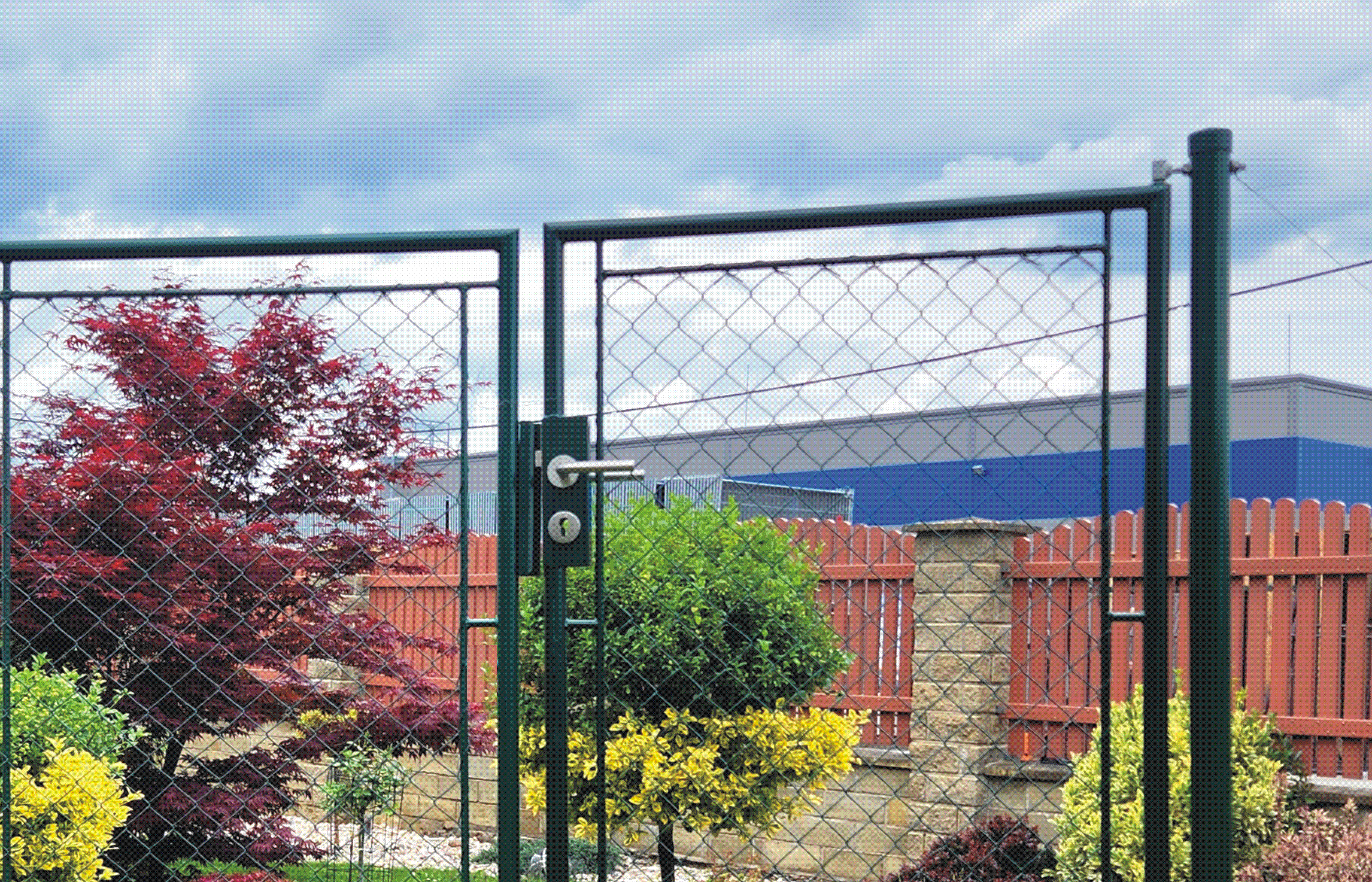

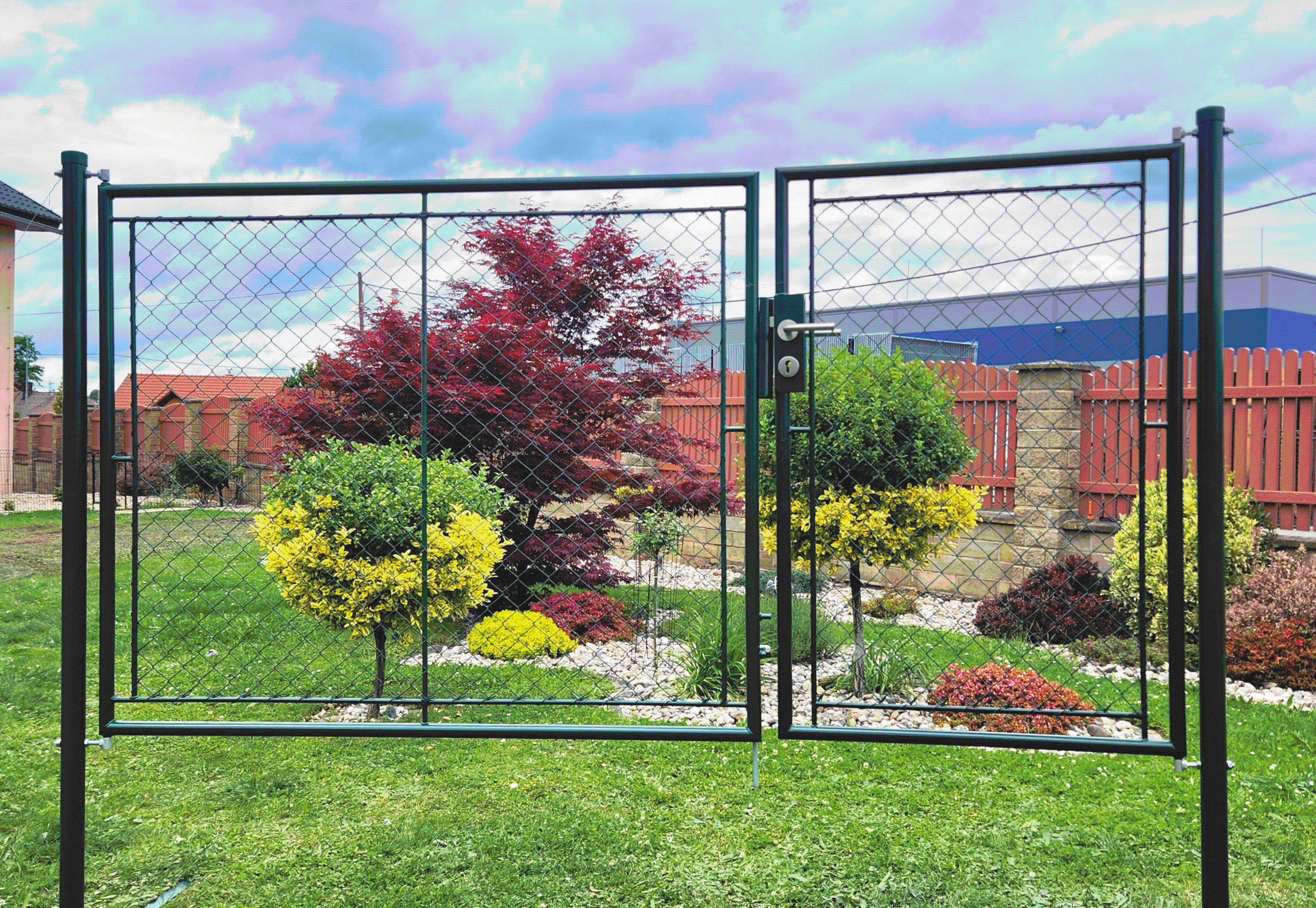

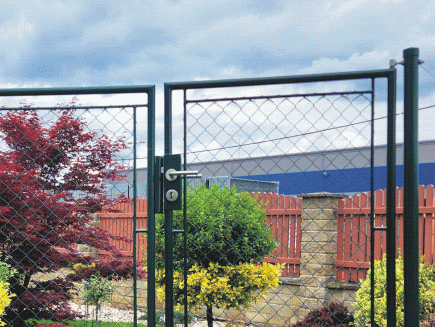

Asymmetric 2-leaf gate , height 125cm and width of wings 100cm (gate) + 180cm (gate wing), plastic-coated with handle closure and lockable with a classic key , woven with 4-sided (classic) mesh. The width of the passage is 280 cm and the width of the entire gate incl. columns is approx. 296 cm. Only our company offers gates with posts with a diameter of 60 mm and a wall of 2.5 mm (the competition only offers 1.5 mm, which rot much sooner) and an all-metal pocket with a high-quality deep mortise lock.

Promotion! Now you will receive a stainless steel handle worth 400 CZK for this gate from us for free.

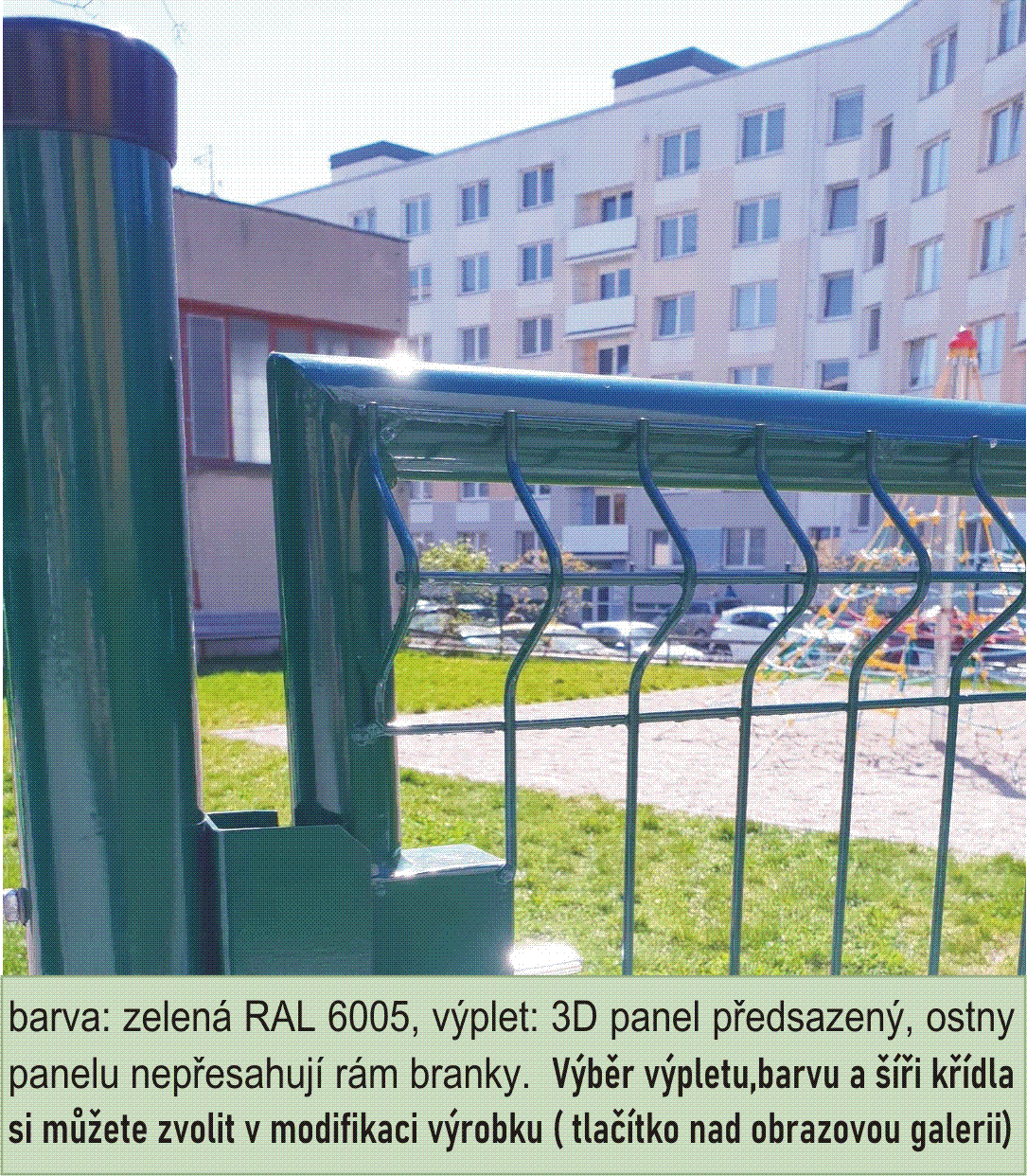

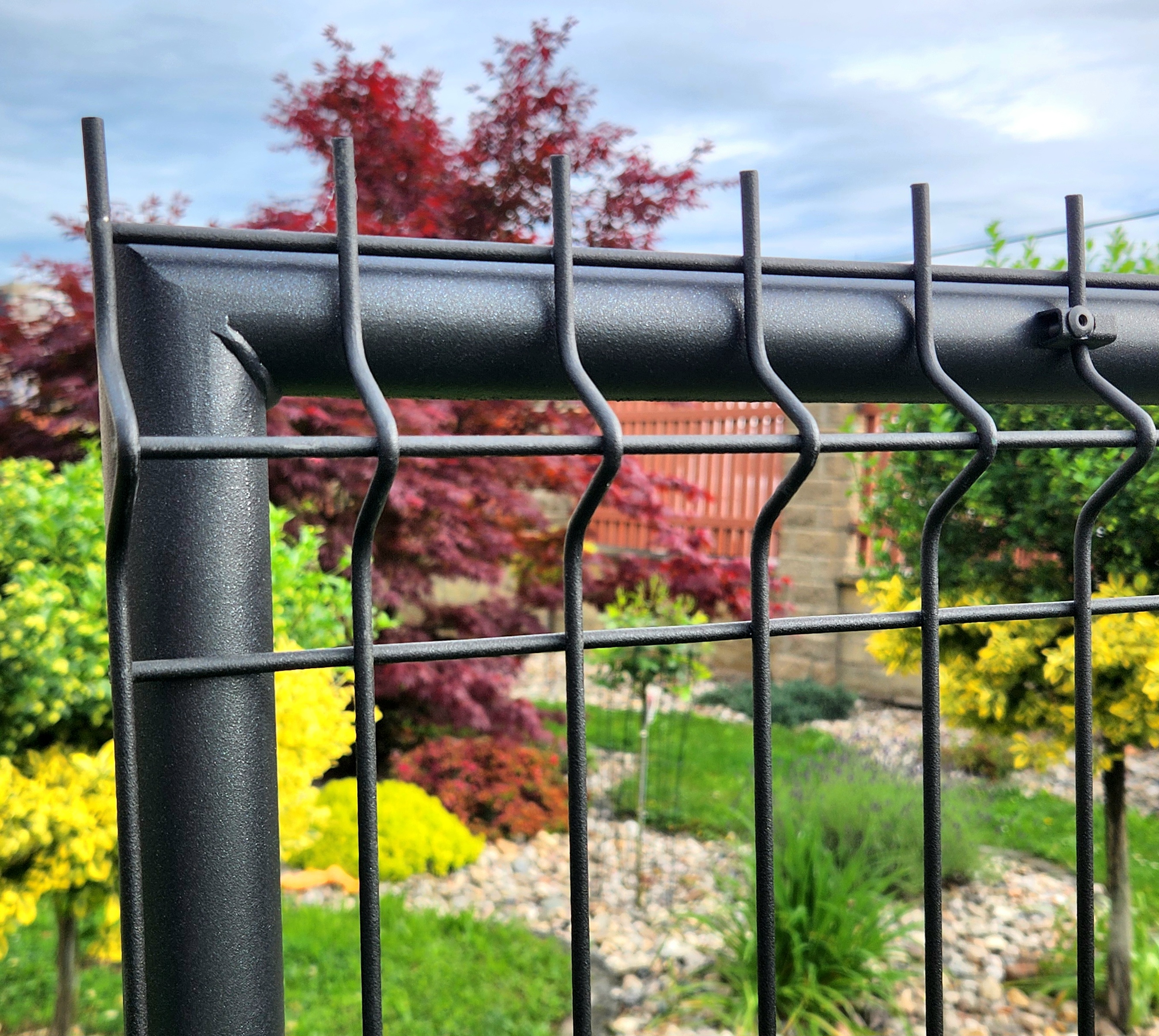

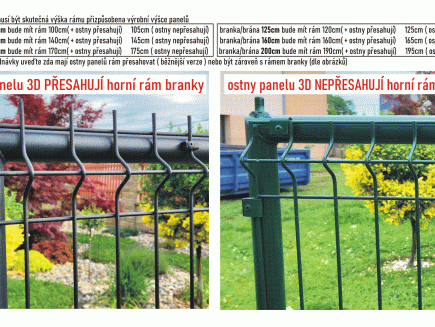

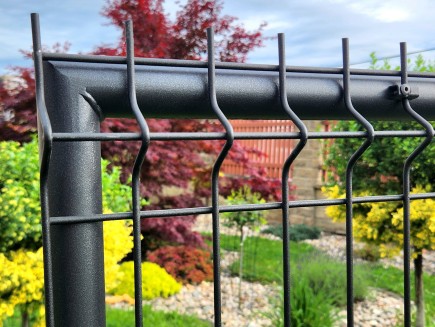

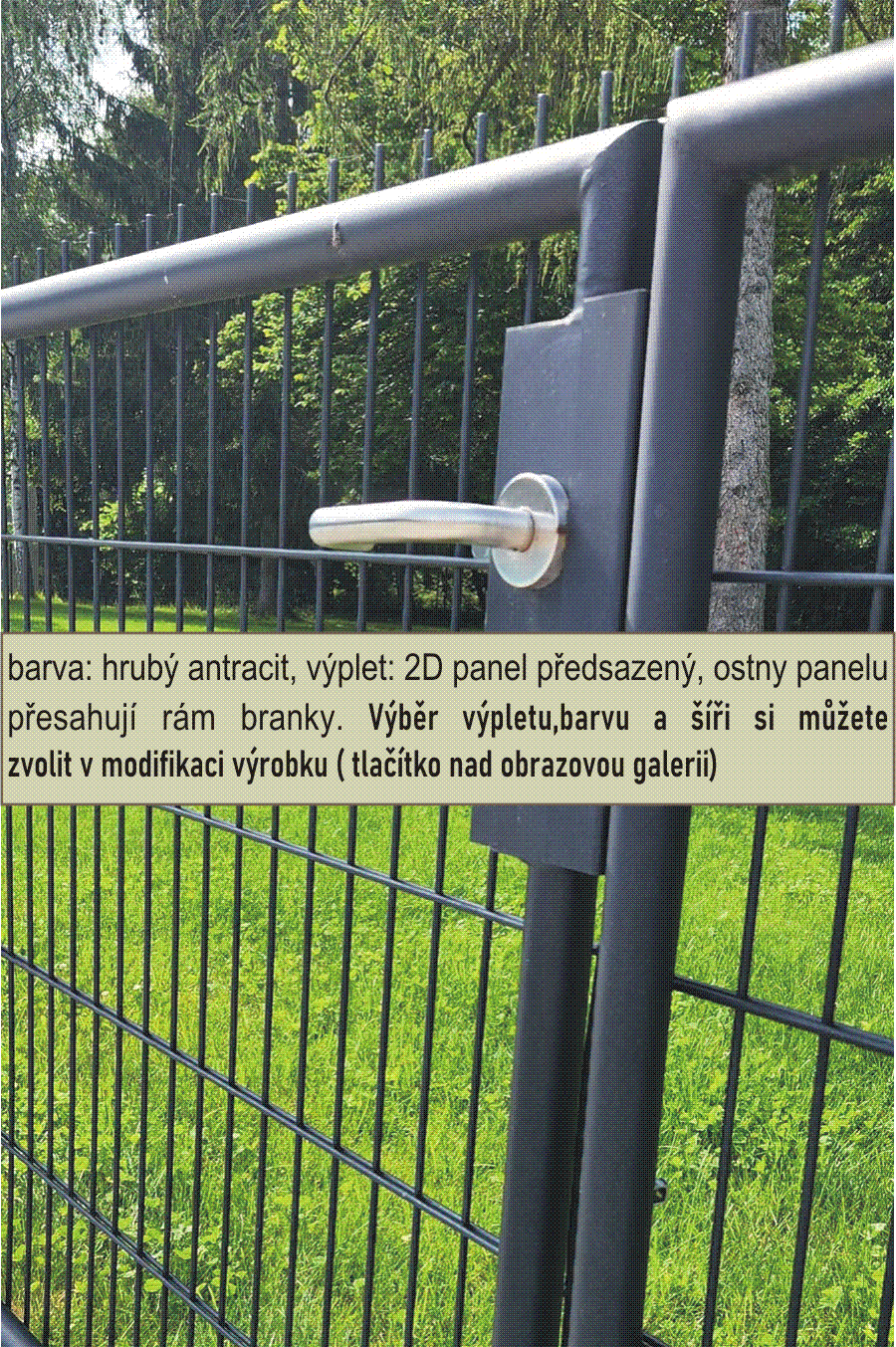

You can choose other dimensions of the wings or strings in the modification. An overview of possible modifications can be clearly seen in the product image gallery. The modifications include the most common and most requested combinations of color, strings and dimensions. (If you require another modification that is in the gallery but not in the modification offer, contact us, for example by e-mail, we will resolve your request individually). In addition to the listed modifications, you can configure your goal/gate completely according to your ideas in our online gate and goal configurator.

The gate is made of galvanized pipes, which are plastic-coated in the shade RAL 6005 - fir green . The practical functional design of this gate predetermines the use of this gate in all segments of application, especially in combination with classic mesh when fencing gardens, family houses, orchards, etc. The width of the passage is designed and tested over the years to suit the entry of cars and trucks. Czech quality product , no imports from China, Poland. Before comparing our gates with gates on the market, please do not only compare the price, but also our well-thought-out, high-quality locking solution. In the gallery, see the appearance of the products, the quality of workmanship and the strength of our gates and gates with fixed posts. By comparing, you will easily find that our gates and gates are a "luxury line" of products, which of course cannot cost as much as gates that are ripped off on material and manufactured for the lowest price at the expense of quality.

* Gate leaves: - the outer frames of both leaves are welded from a 38mm galvanized pipe , then another tubular frame from a 14mm pipe is welded into these frames and a pocket for the locking mechanism is inserted into the right leaf and a plug into the left. Then the entire frame is high-quality polyester plastic coated in RAL 6005 - fir green . Then the inner frame of the leaves is woven and sewn with a 4-sided classic EXTRA mesh made of 2.7mm solid wire.

* Goal posts: 2 pcs of hinged posts are made of 60mm pipe, 2.5mm walls. The posts are approx. 50cm longer for concrete than the height of the goal (dig a hole for the post approx. 80-90cm, fill the lower half with concrete, compact it and then insert the post. For reinforcement, you can push a roxor, nail, wire, etc. across the post, which will prevent the post from rotating in the concrete, Supplied including top caps

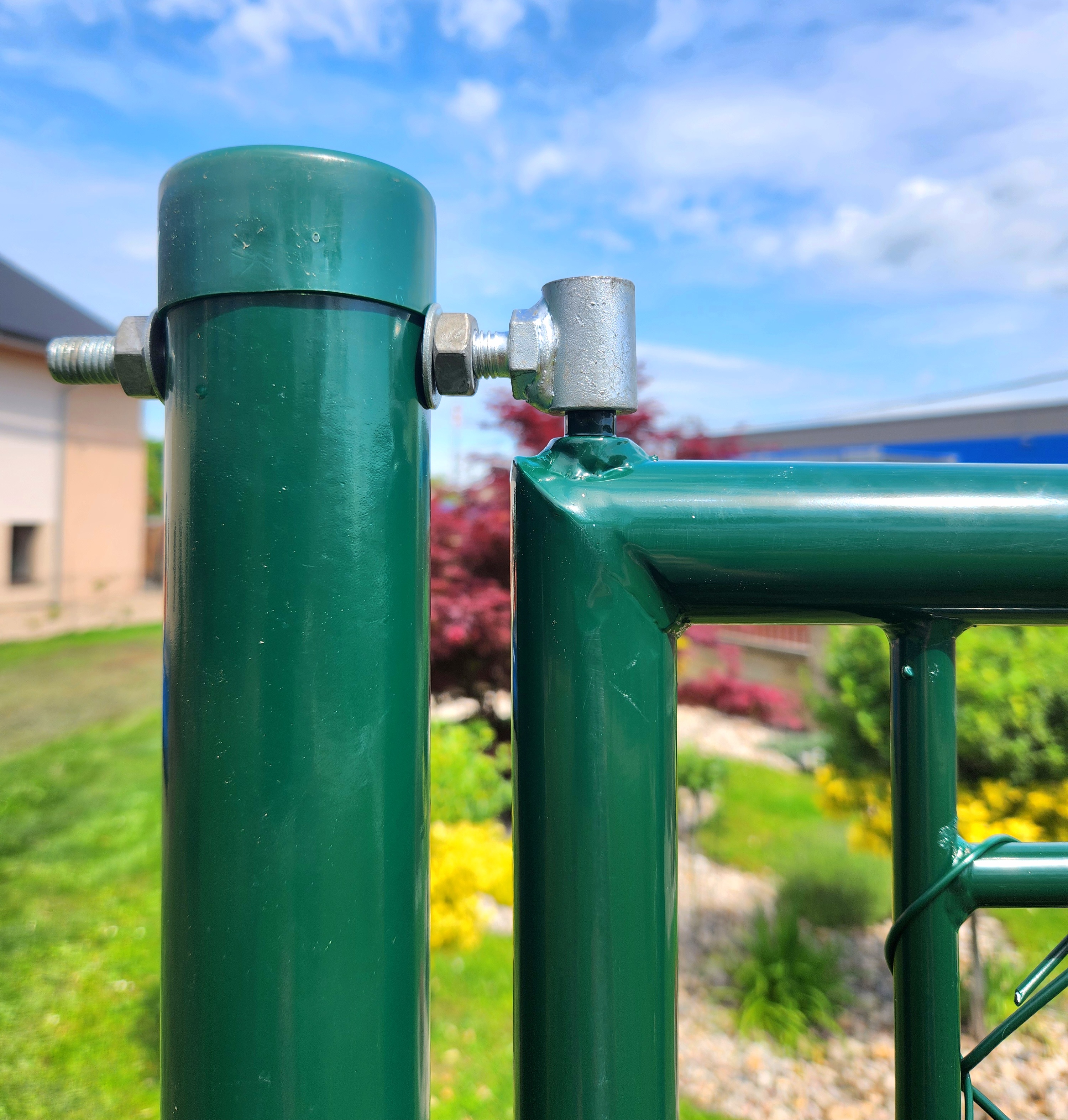

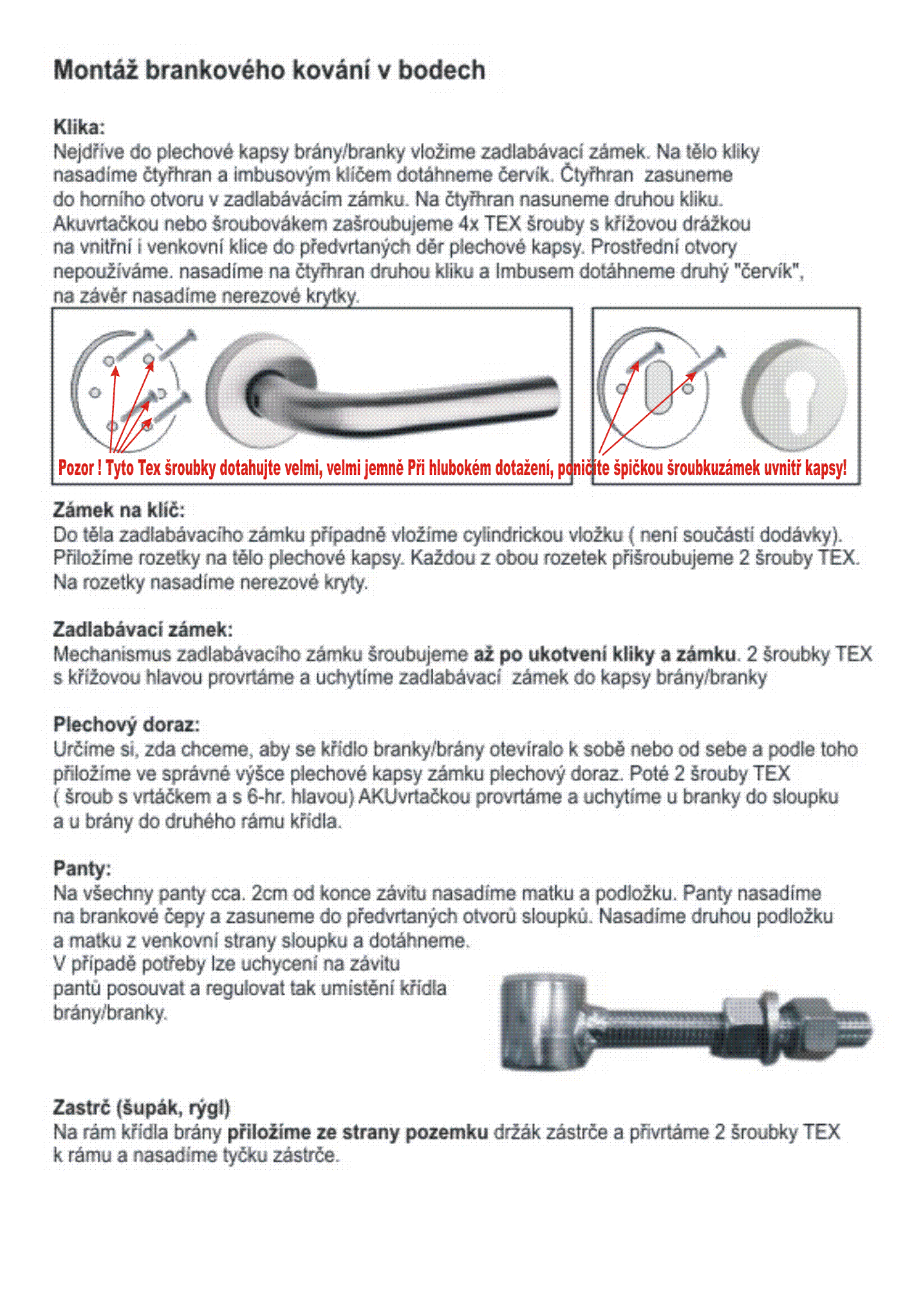

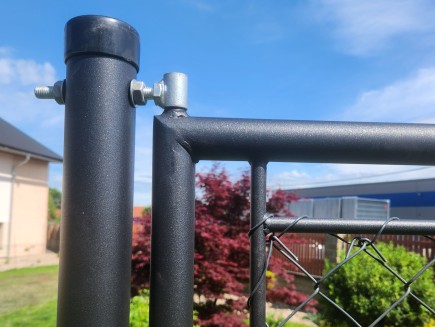

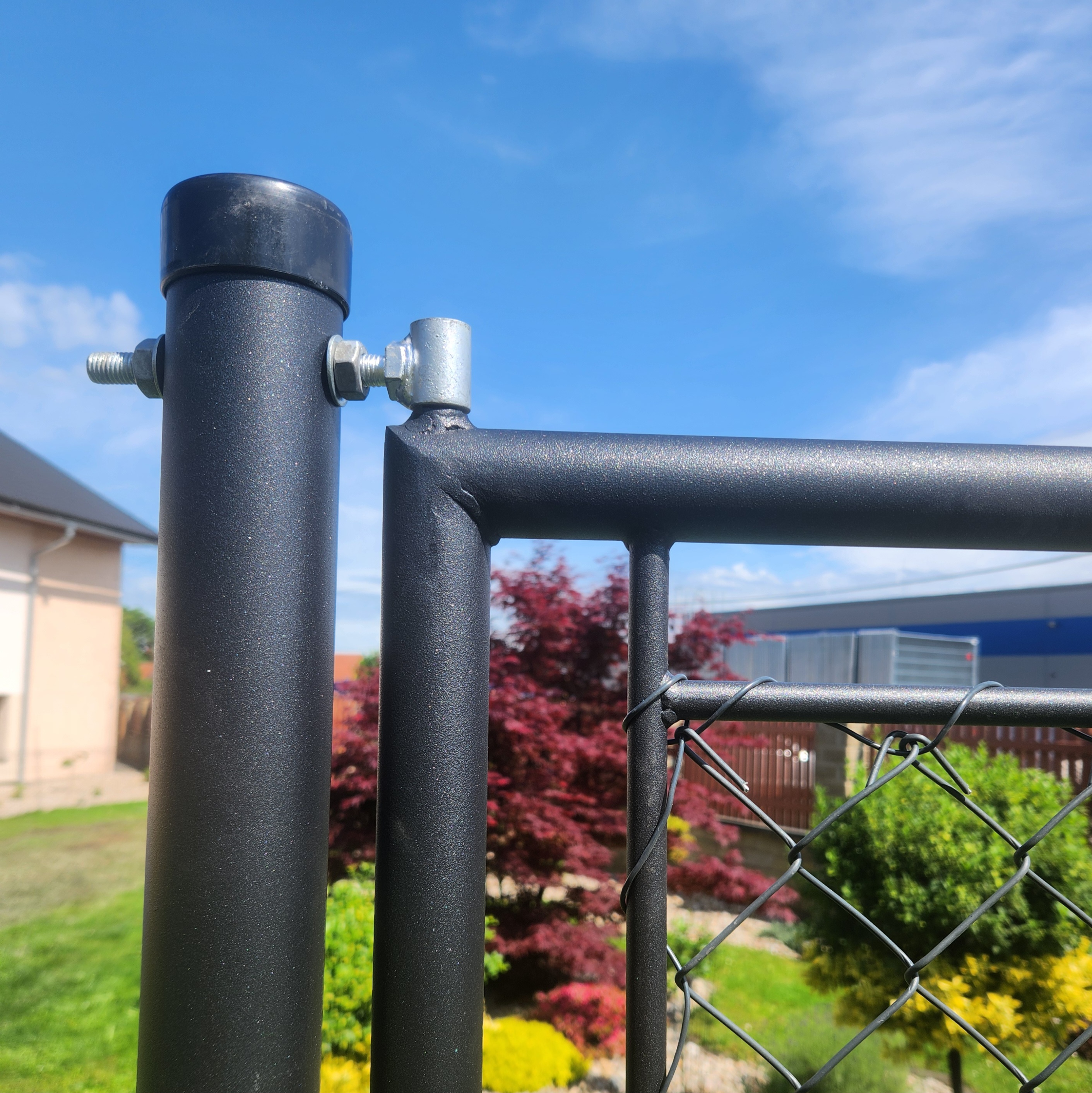

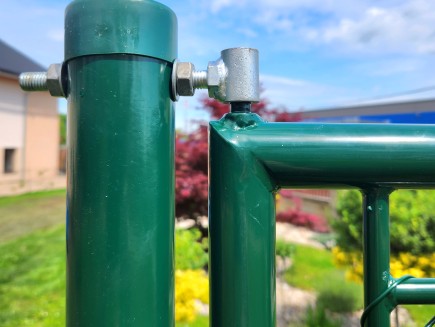

* Gate accessories: a set of upper and lower adjustable hinges for each post, with which you can easily adjust the exact position of the gate wings, as well as all fittings, an adjustable stop of the right wing to the left, all fasteners and a handle with a closing mechanism - all in a maintenance-free design . The gate includes schematic assembly instructions for easy assembly and installation.

The left gate leaf, when viewed from the street, is secured against unintentional opening by a plug ("slide", a securing pin), which cannot be opened when the gate is closed and locked, so the gate cannot be opened without unlocking. The right wing is locked and closed into this left wing. The handle and locking mechanism are located in the right wing . With a simple adjustment, you can choose to open the right gate leaf towards or away from each other . After unlocking and opening the right wing, the plug can be lifted from the left wing and the left wing can then be opened as desired to the street or the property. The opening angle of the gate leaves is approx. 130°.

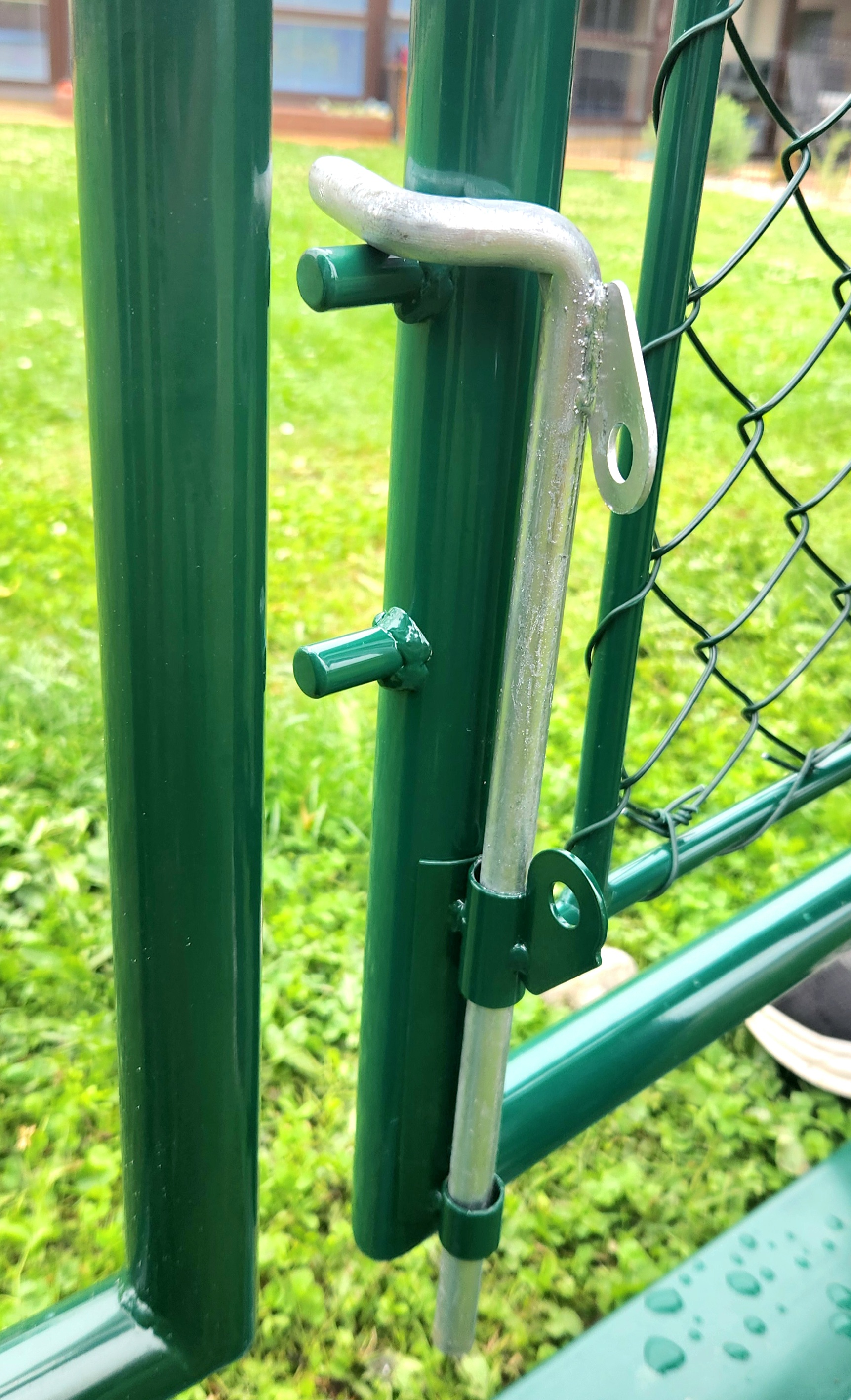

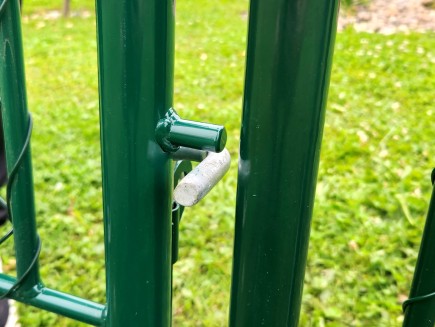

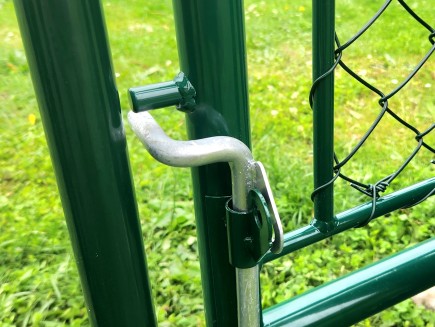

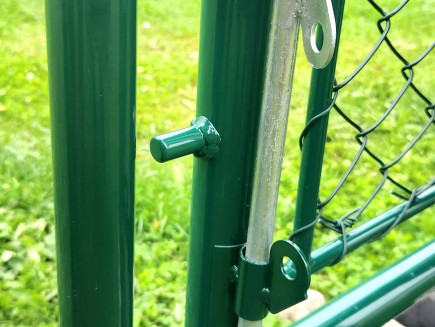

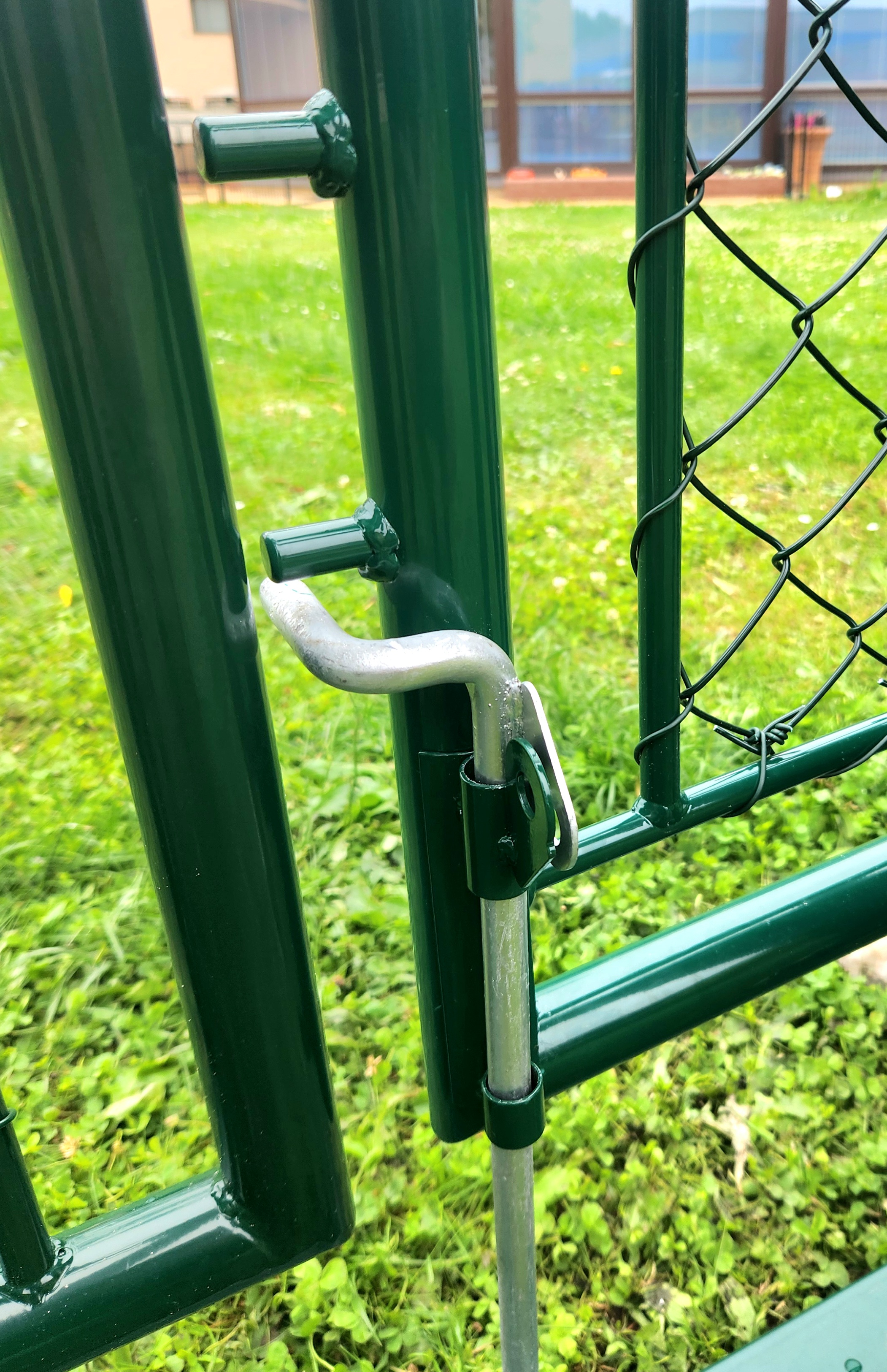

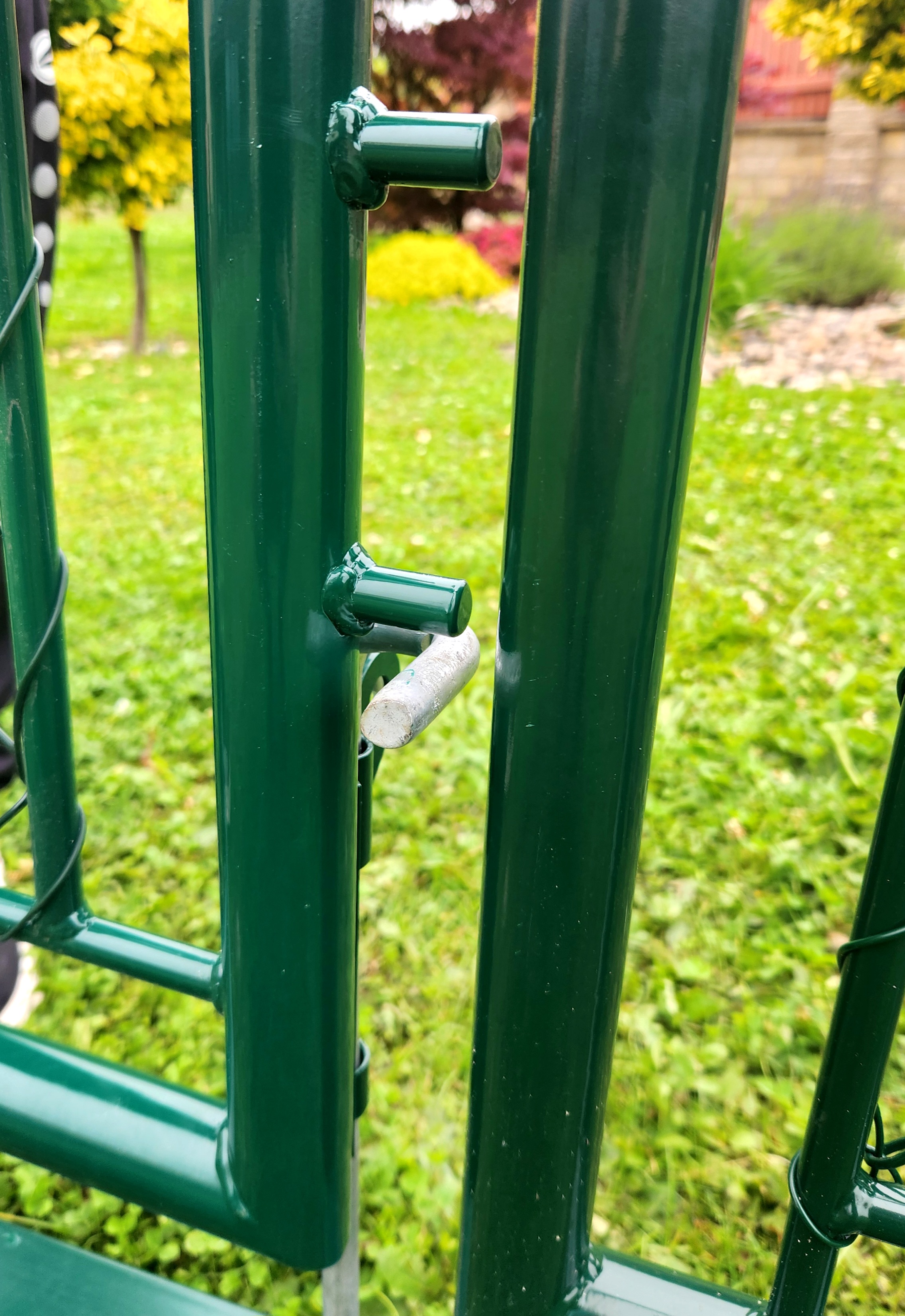

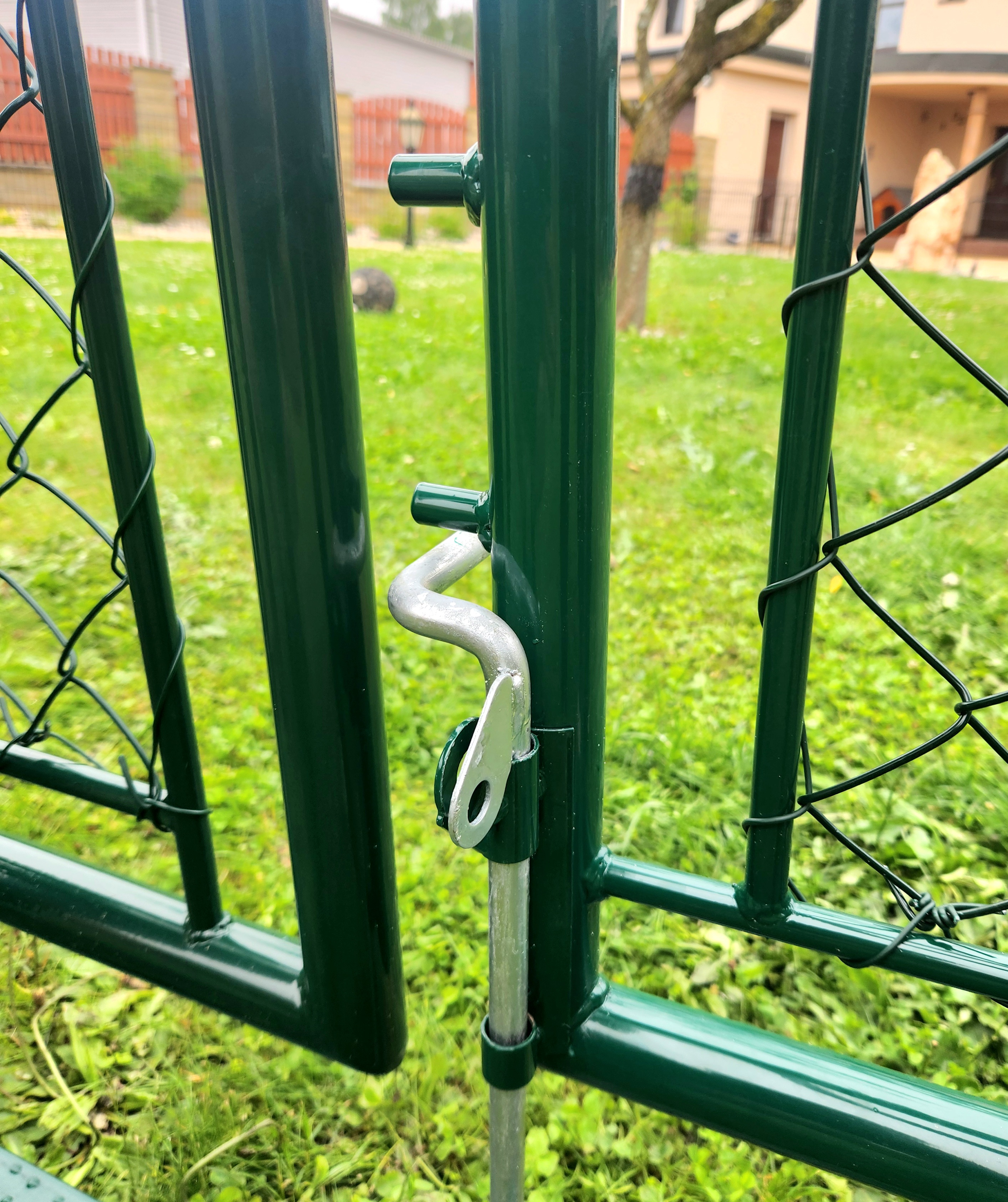

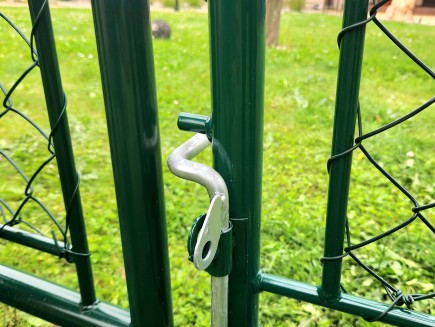

The "slider, bolt" plug is a ground rod designed so that when locked, it is not possible to pull the plug out of the ground and open the gate by breaking the wings. Only after unlocking and opening the wing with the handle (at least by approx. 10cm) can the plug be turned 90° and the second wing without the handle can be lifted and opened. There are 2 rollers on the gate frame, the lower one serves as a barrier against lifting the holder in the locked state, the upper one serves to put the plug away when open. The advantage of this plug is that you only need the key to the cylinder insert to lock it and you do not need any other (padlock) lock to secure our 2-wing gate. However, if you want the bolt to be locked, you can also lock the plug with a padlock, as there are padlock eyes on the gate and the bolt. This years-tested plug is protected by our patent design and is only available on our gates.

The gate does not include a cylinder insert , because customers often combine the key with the house key, but you can purchase it separately.

We recommend that the goal is always braced on both goal posts. The braces are attached to the goal posts using a 60mm sleeve . The installation of the 4-sided (classic) mesh on the goal post is done by sewing the post with binding wire .

You can order a color version other than fir green (e.g. a different finish, color, size) in the modification menu.

In addition to this offer, you can configure any size or design of the gate or gate yourself and find out the production price immediately in our online calculator . The production time for atypical gates usually takes 10-14 days, depending on the complexity of the design.

Our tip for a very simple and trouble-free installation that anyone can do without having to measure anything exactly during installation. ** Drill or dig holes for the posts (to a depth of 80-90cm and the appropriate diameter), the axial spacing of the holes = the width of the goal/gate + hinges + adjustable stop + post. ** Assemble the entire assembly lying down, e.g. on a mowed lawn, cardboard, carpet, etc. (insert the wings into the hinges, screw the hinges into the posts, insert the metal gate stop, etc.... ** Place the roof battens over the entire assembly over the upper hinge and approx. 10cm above the lower hinge and secure everything with, for example, plastic zip ties and thus firmly fix the entire gate and the posts. ** Place 5cm high blocks between the dug holes, which will define the gap between the paving and the bottom of the gate frame. ** Pour concrete into the dug holes to approx. 1/3 of the depth and compact it. ** Grab the ends of the battens and insert the fixed gate with the posts into the dug holes and concrete the entire fixed assembly to the surface of the ground. ** Let the concrete harden. ** Then use the adjustable hinges to fine-tune the precise spacing between the wings and the posts. The advantage This way you cannot make a mistake in the spacing and depth when concreting the posts and you are guaranteed to be able to install the gate or gate easily and accurately.

Why choose gates and wickets from us? Consider this overview for yourself.
There are several manufacturers and especially importers of gates and wickets from Asia and India in the Czech Republic. We are Czech manufacturers and gate experts with an annual production of over 20 thousand. wings and we would like to provide you with truthful information and differences:
Plastic coating: We – Exterior UV stabilized polyester with pre-treatment / Competition only powder coating
Frame profiles: We – hot-dip galvanized tubes 38mm, wall 1.2mm / Competition only thin tubes 1.0mm

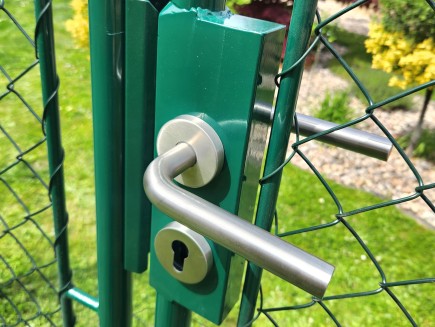

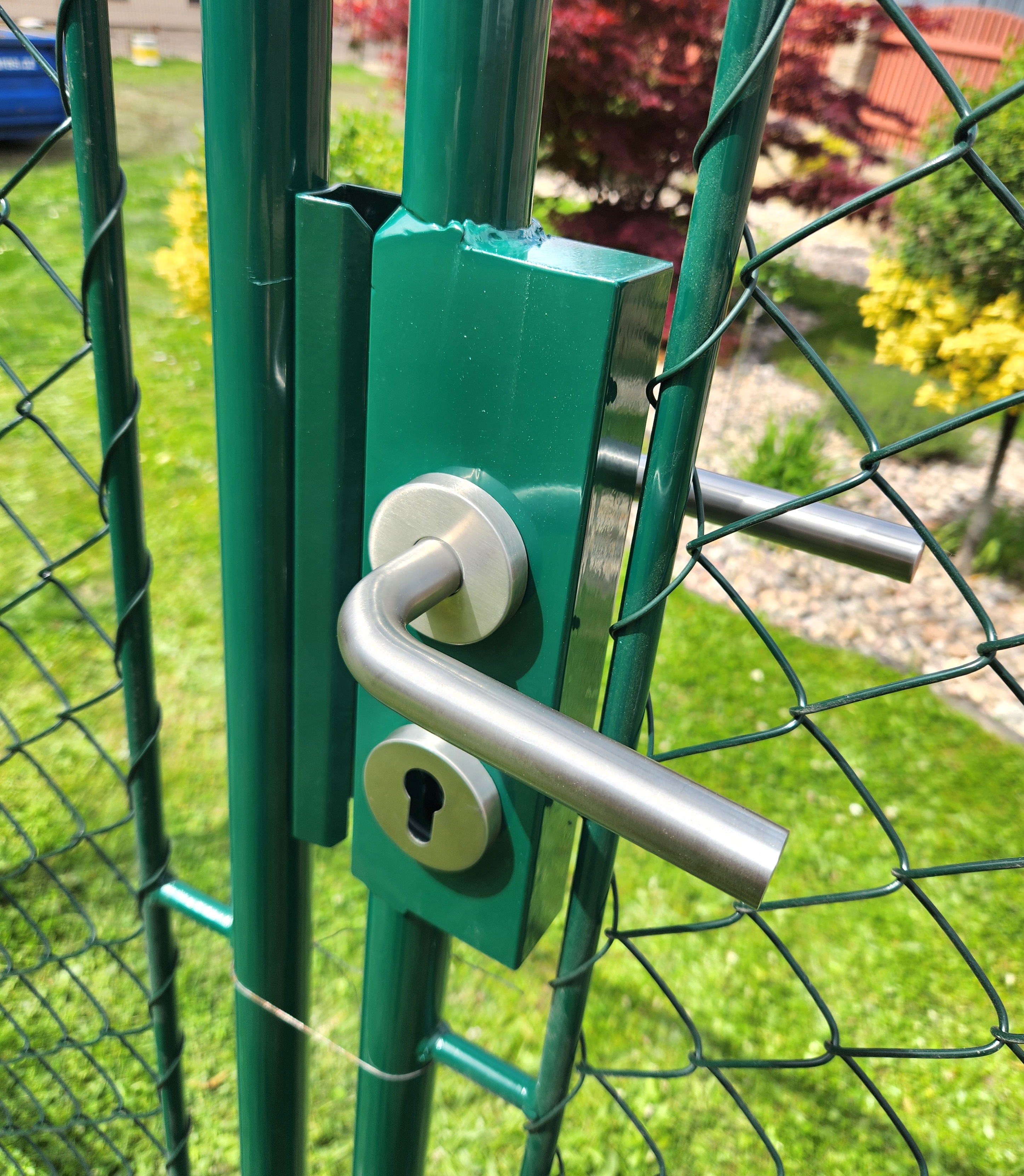

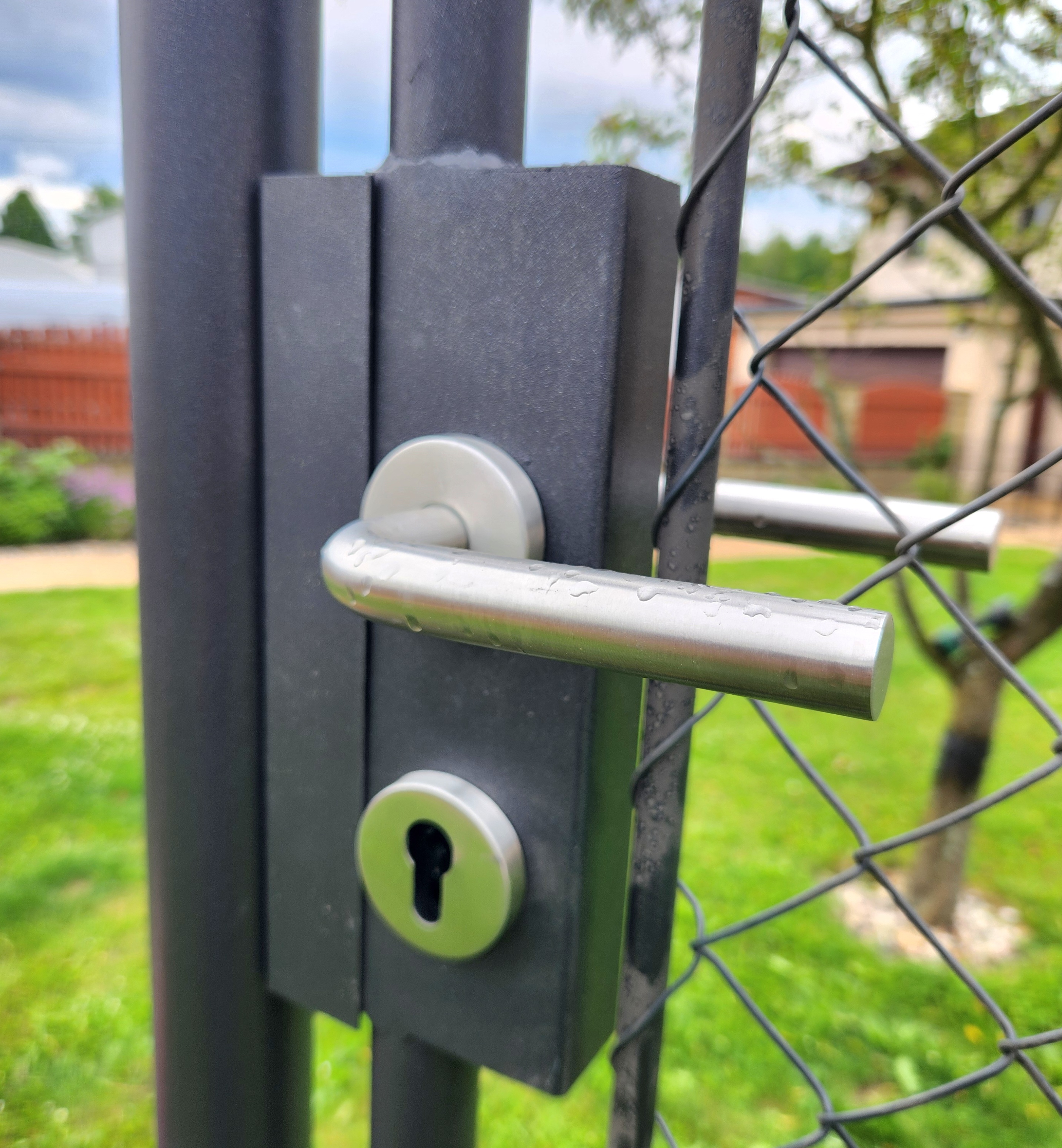

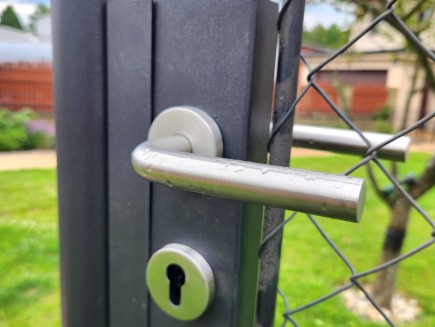

Mortise lock pocket: We – a solid all-metal pocket made of one piece (no folded sheet metal that rains into) in which there is a full-fledged reliable mortise lock. Competition: cheap design (no pocket, a simple Asian mechanism is in the body of the post)
Goalposts: We – 60mm, wall 2.5mm / Competition thin-walled pipes max. 1.5mm
Lock mechanism: We – full-fledged mortise lock in a sheet metal pocket / Competition – unsightly non-functional Asian tapered lock in a tube

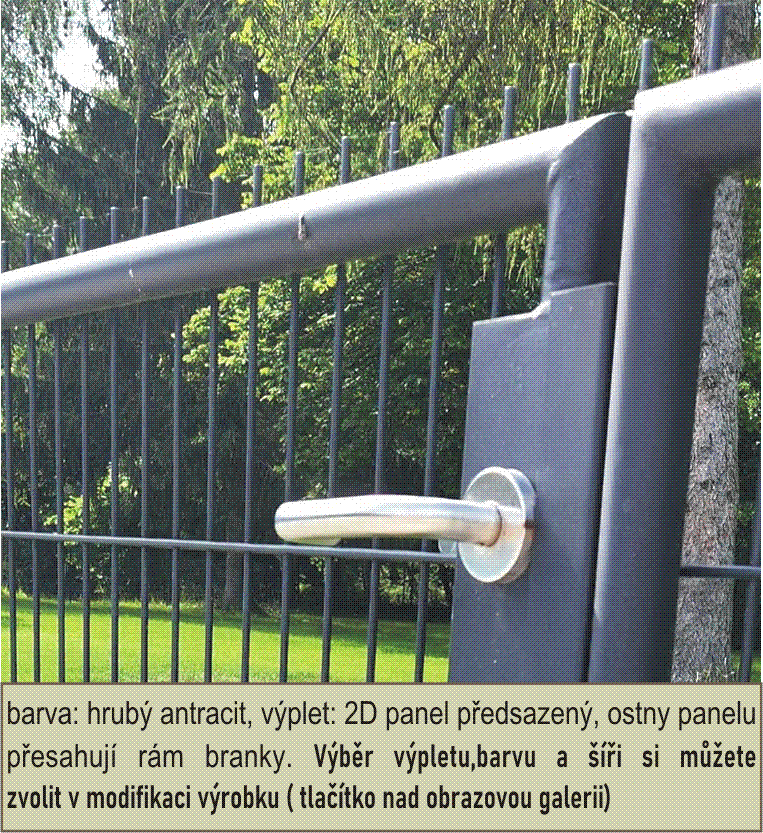

Handle: Us – stainless steel handle worth 500 CZK / Competition – cheap plastic Asian handles
Mesh: We – high-quality mesh made of 2.7mm wire / Competitor – mesh with 55m mesh, weak wire, cheap version
Packaging: We – high-quality, entire frame wrapped in miralon / Competition – only in plastic
Gate production: We – in the Czech Republic in our workshops / Competition: Asia
Variability: We – dozens of string variations, sizes thanks to the modification button / Competition: Only the specified size made in Asia
Hinges: We – solid, pass-through, strong hinges M12 / Competition: cheap, weak hook hinges
Price: We – production costs, salary of Czech workers, plasticizing and distribution / Competition: production costs, salary of Asian workers, costs of sea transport around the world
Repairs and complaints: We - components are from the Czech Republic, easy availability / Competition: no Asian replacement parts - throw them away if damaged.
Choose Czech quality, long-lasting premium products with a guarantee from a Czech company.

We can deliver this product to you for free or you can pick it up in person in Vamberk , Tymákov , Telč or Vsetín .

NEW MODEL - CLASSIC PLUS
For this year, we have improved the production program of KLASIK gates with the following modifications:
- the steel frame is now made for the long-term life of the gate from galvanized pipes !!!
- the top coating is now carried out using the top two-component polyurethane paint technology, - comparable to plastic coating, which, compared to synthetic coating, better withstands weather conditions, especially frost and UV sunlight, and does not fade
- adjustable hinges are now a more robust design
- innovative mechanism for closing the left wing, when the left wing of the gate is locked at the same time with the help of one locked Dozic lock (lock under the handle)

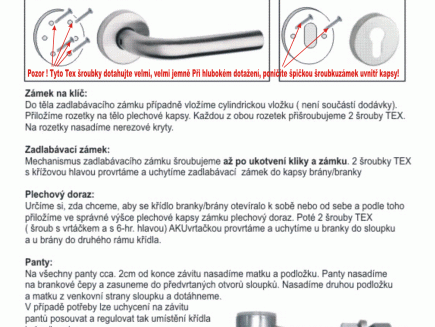

- the gate now includes schematic assembly instructions for simple assembly and assembly.
