Gate 180 x 360 OKO

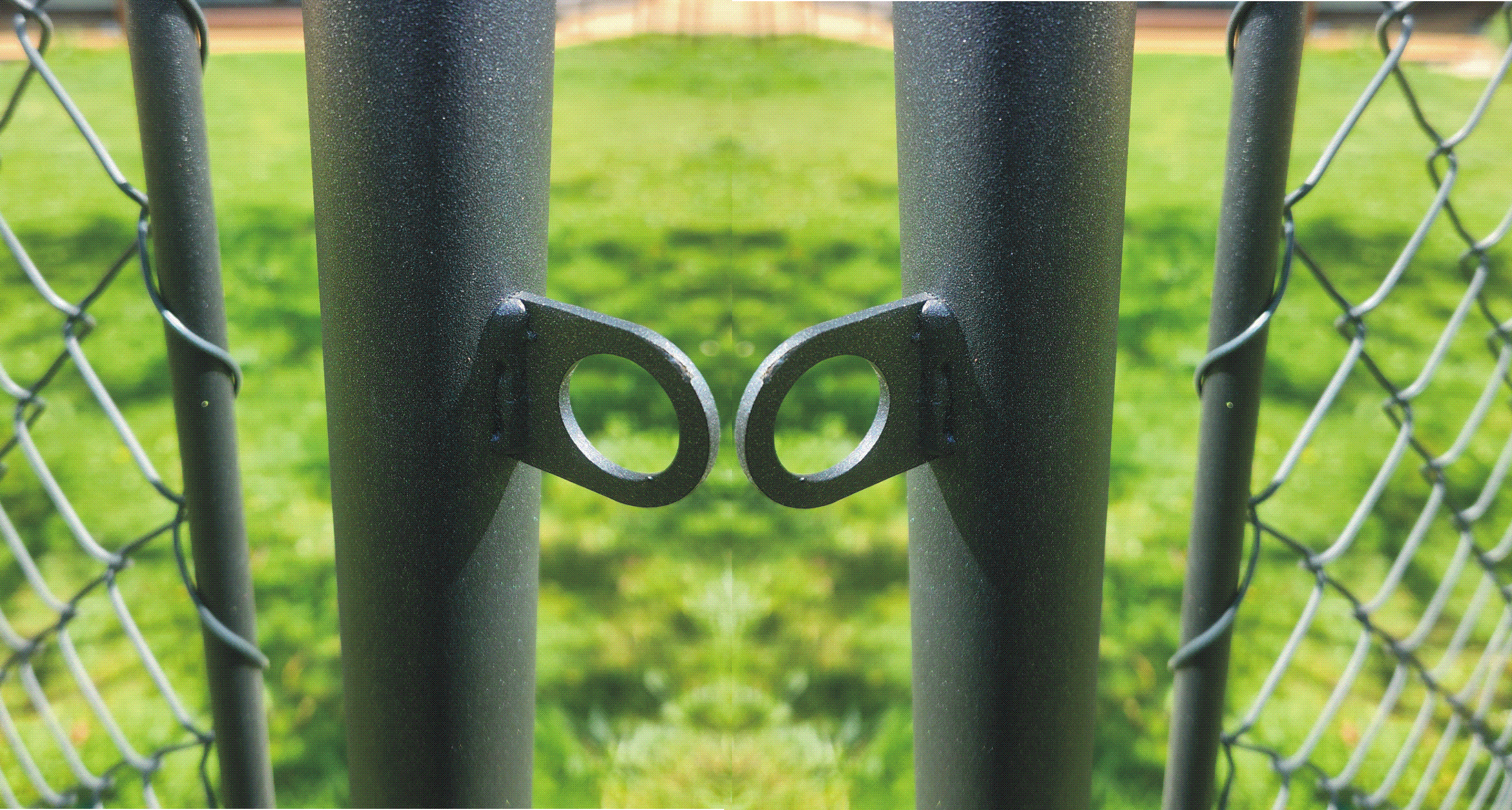

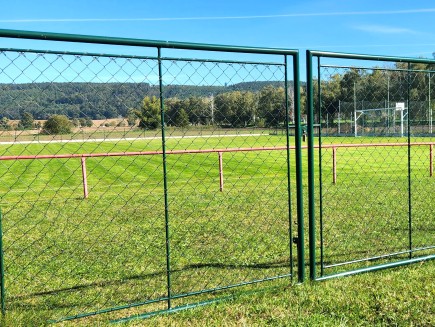

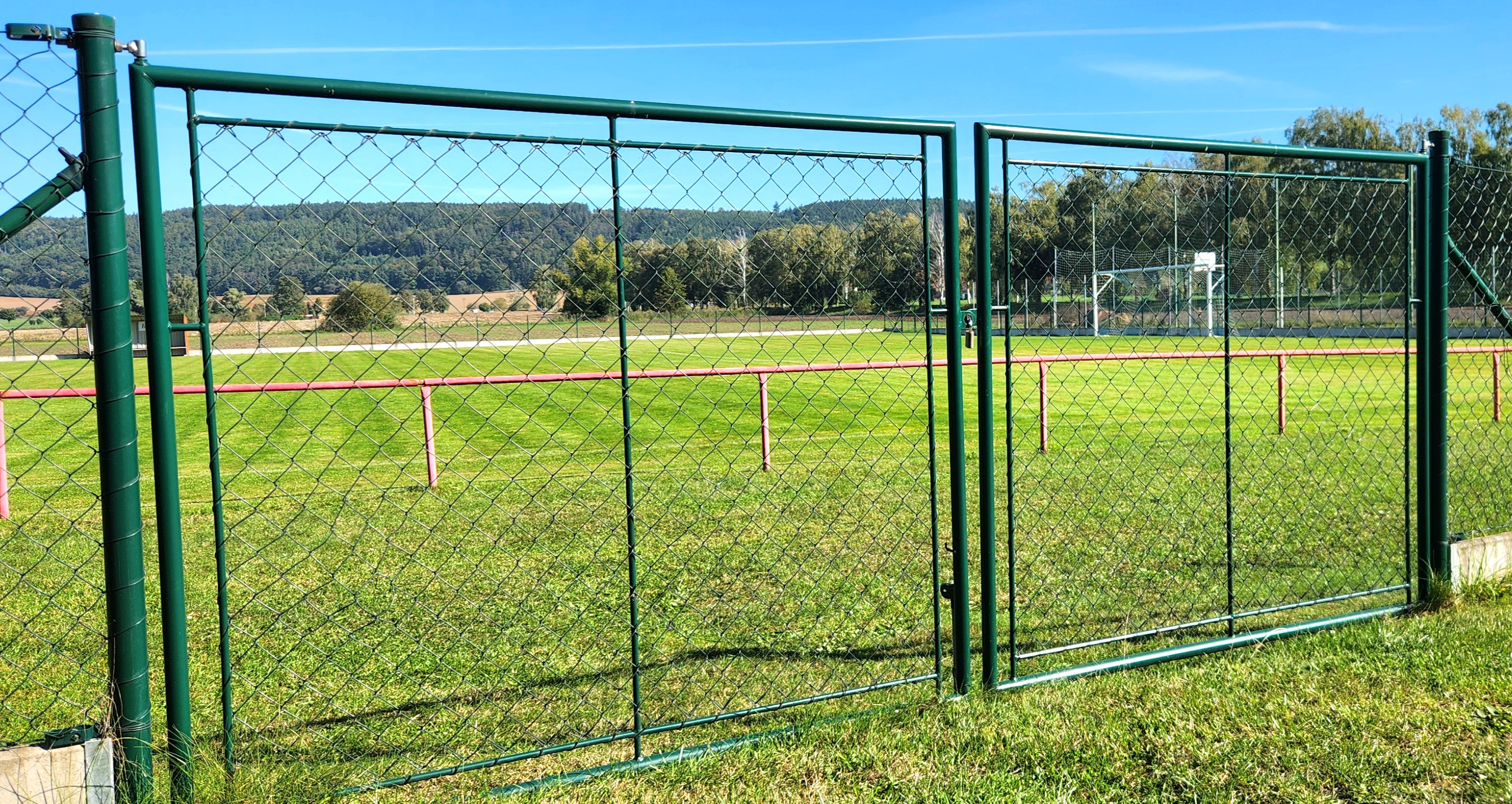

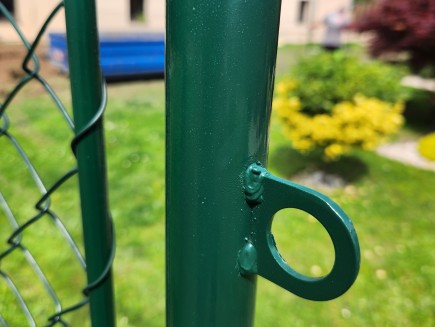

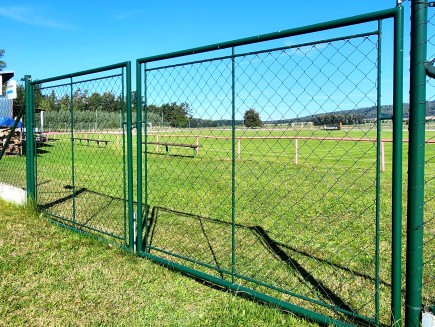

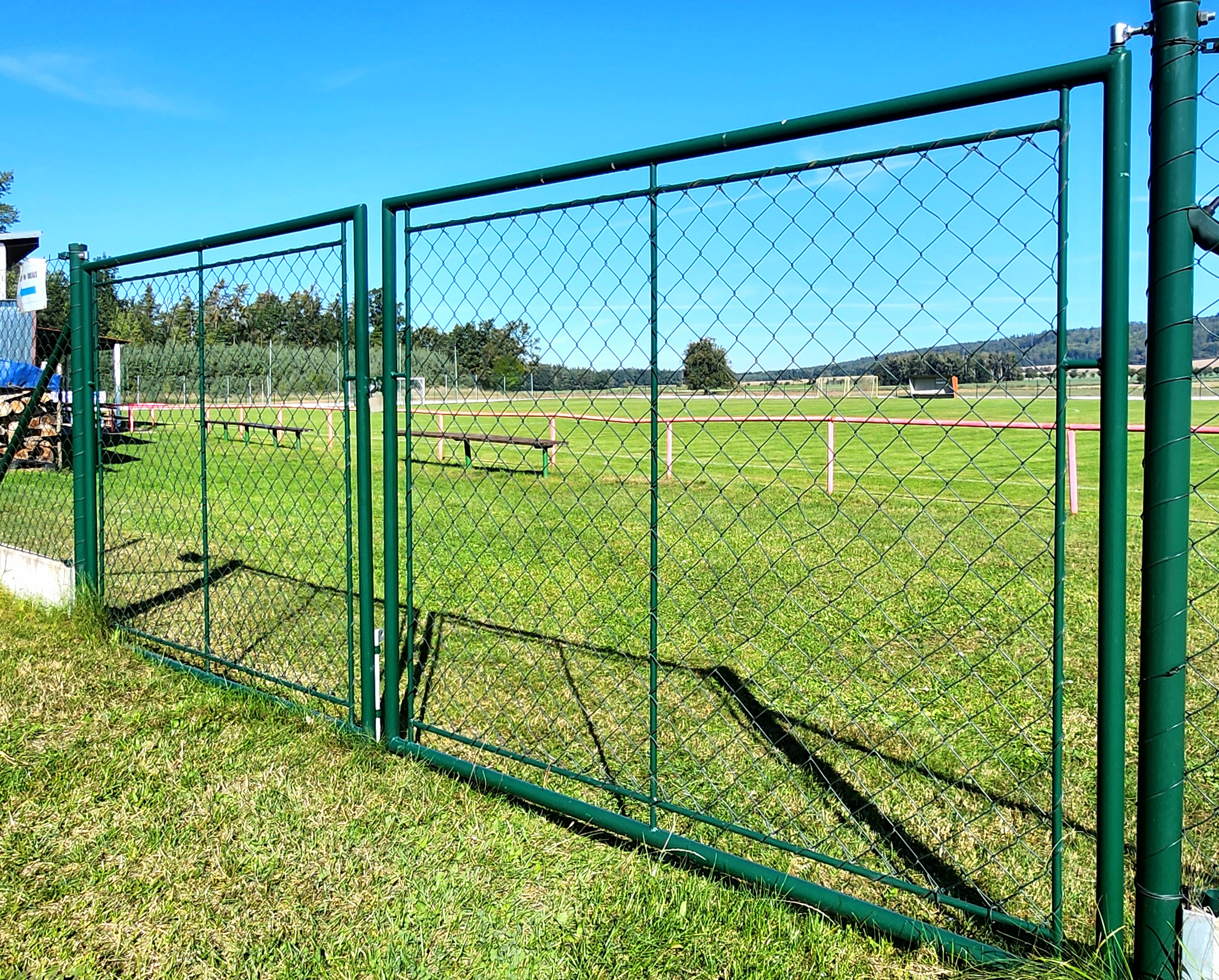

2-wing gate , height 180cm and wing width 180+180cm, plastic-coated with padlock closure, woven with 4-sided (classic) mesh. The width of the passage is 360cm and the width of the entire gate incl. posts is approx. 376 cm. On both wings there are welded fixed eyes for attaching a padlock. The eyes are placed between the wings so that the padlock can be accessed and the padlock can be unlocked and locked from both sides of the gate. Custom production to customer order. Only our company offers gates that have posts with a diameter of 60mm and a wall of 2.5mm (the competition offers only 1.5mm, which rot much earlier)

The gate is made of galvanized pipes, which are plastic-coated in RAL 6005 - fir green . The cheap but reliable padlock locking system predetermines the use of this gate in segments of common use in gardens, orchards or farms - especially in combination with classic mesh for applications where the gate does not need to be opened often. The width of the passage is designed and tested over the years to suit the entry of cars and trucks. Czech quality product , no imports from China, Poland. Custom production based on customer order

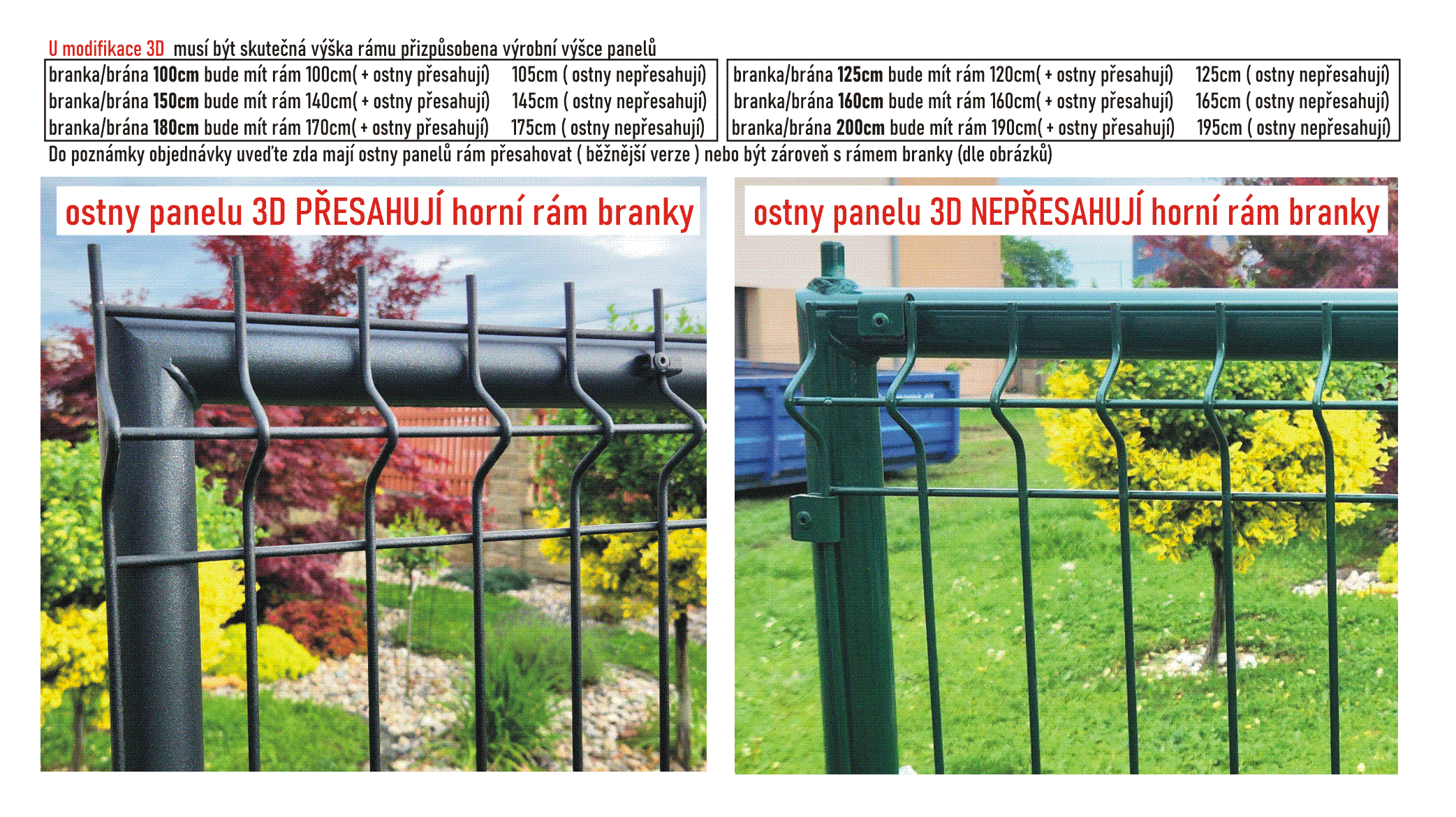

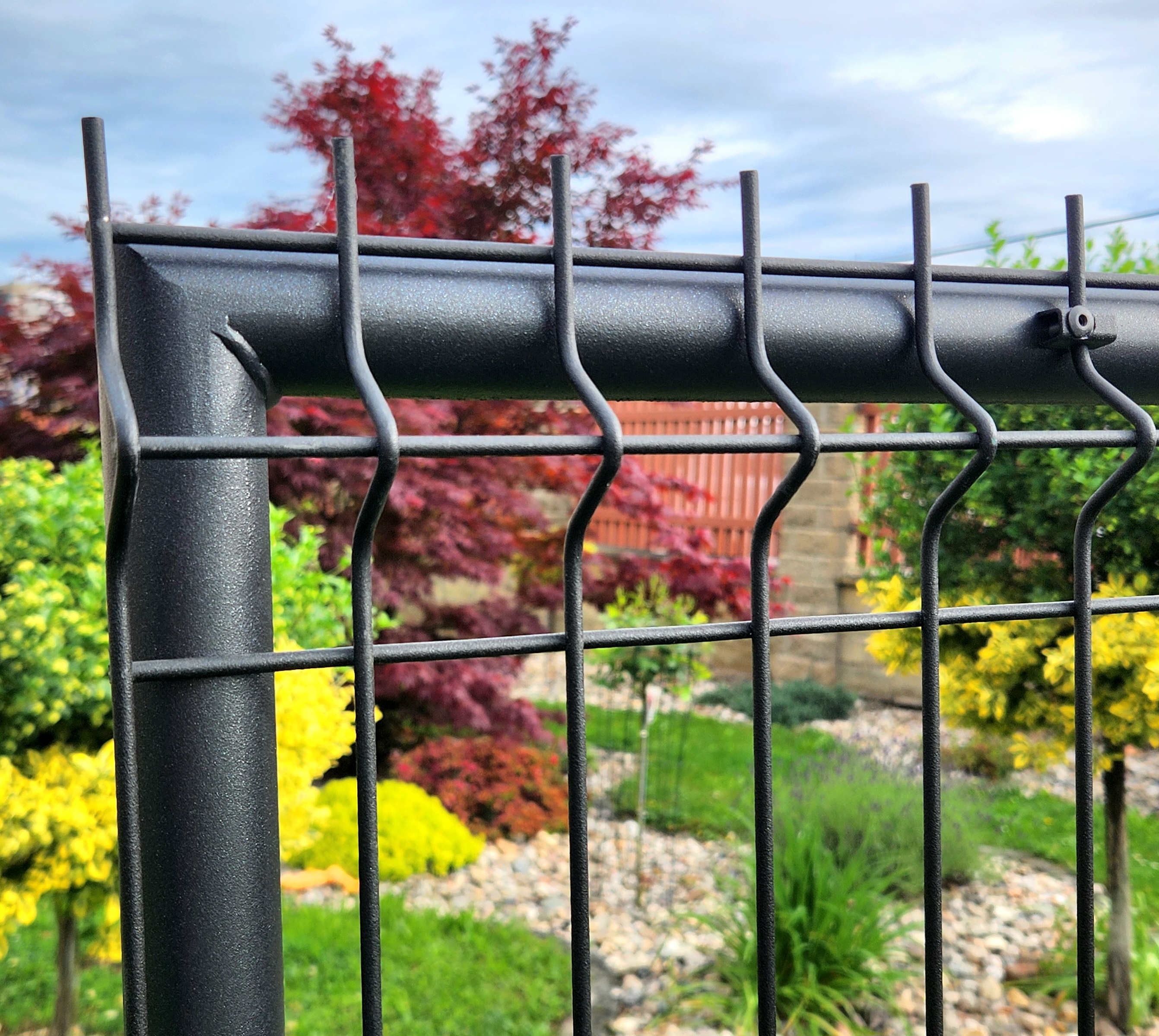

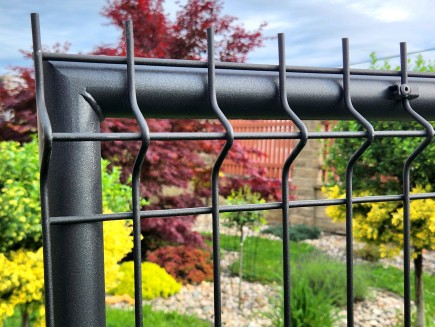

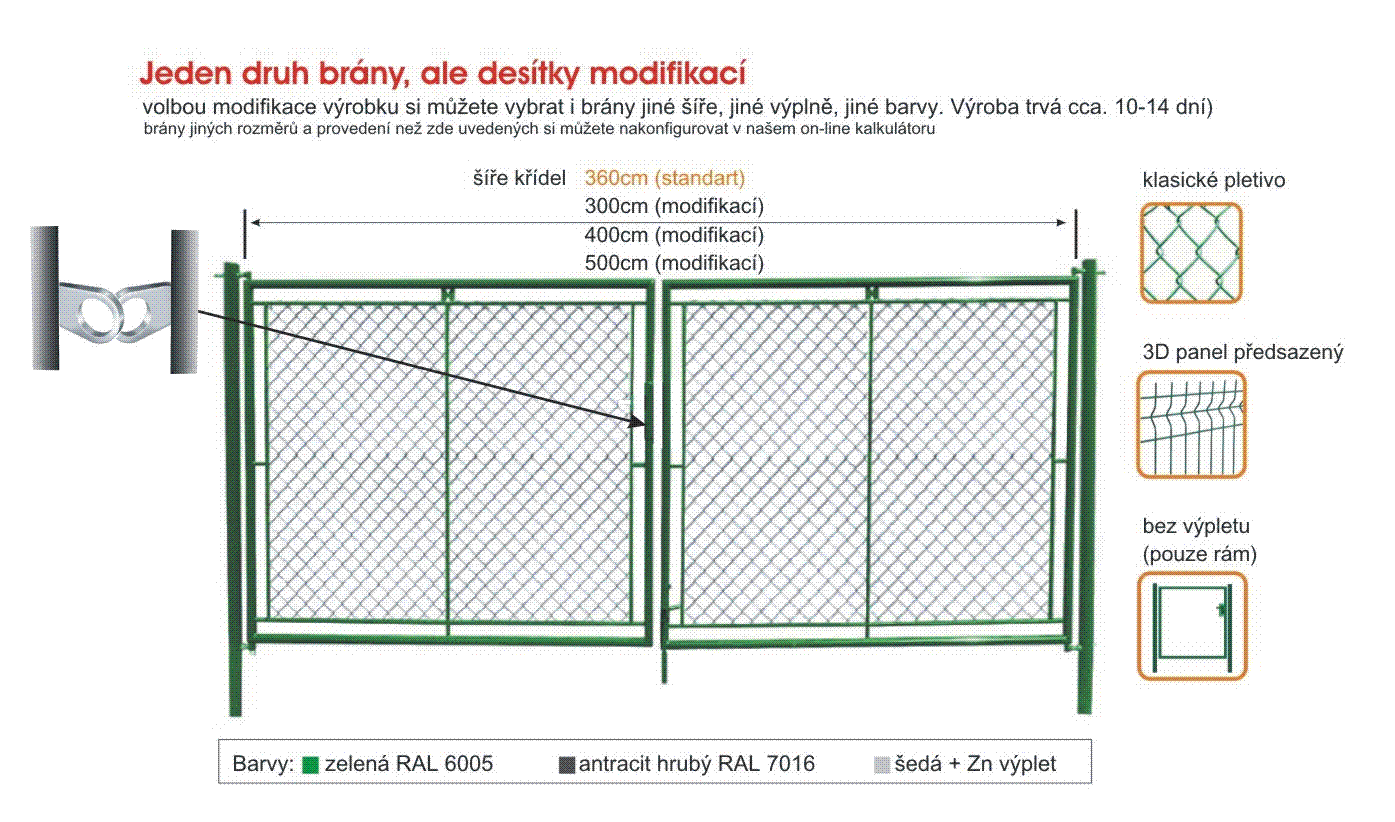

You can choose other dimensions of the wings or strings in the modification. An overview of possible modifications can be clearly seen in the product image gallery. The modifications include the most common and most requested combinations of color, strings and dimensions. (If you require another modification that is in the gallery but not in the modification offer, contact us, for example by e-mail, we will resolve your request individually). In addition to the listed modifications, you can configure your goal/gate completely according to your ideas in our online gate and goal configurator.

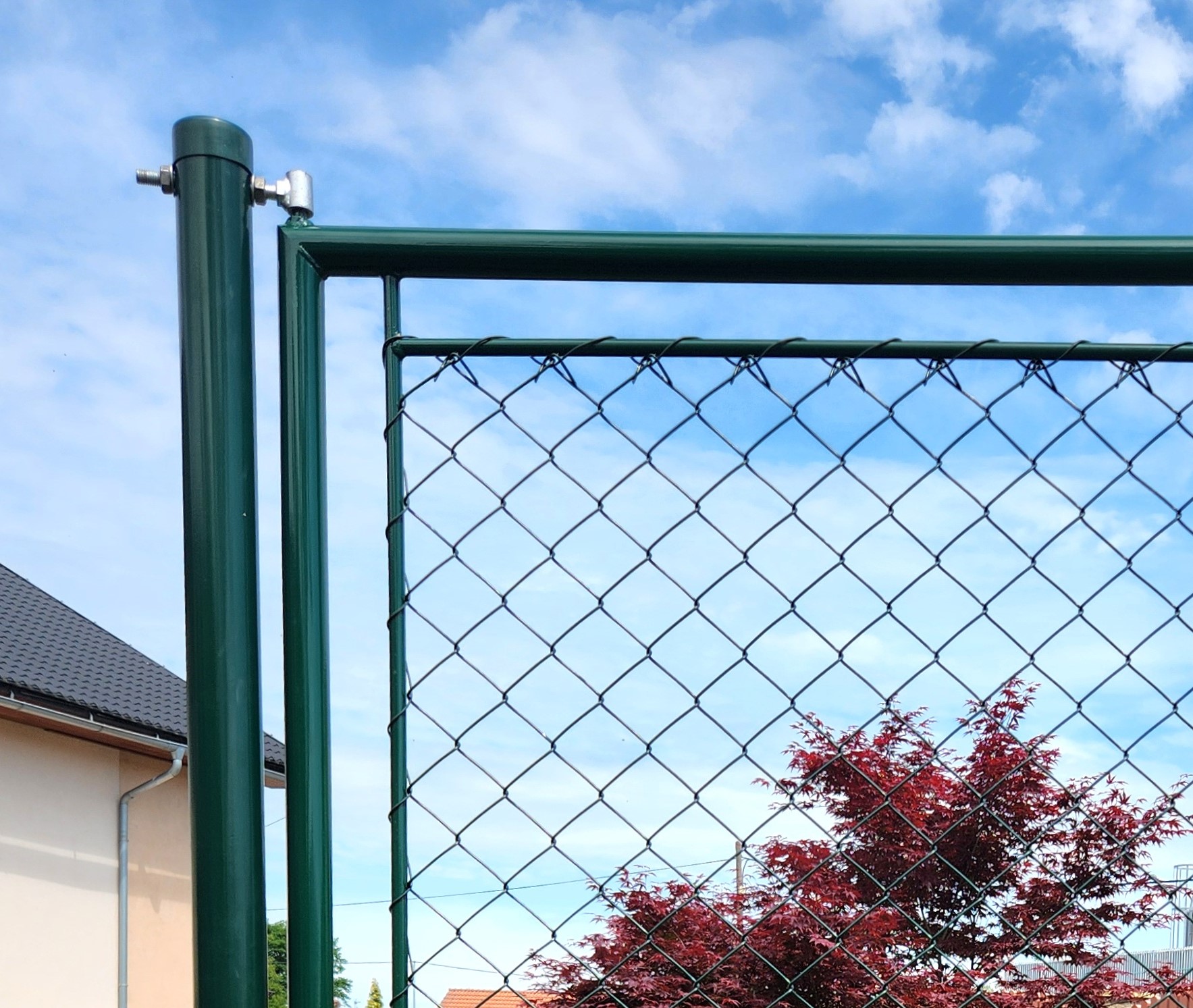

* Gate leaves: - the outer frames of both leaves are welded from a 38mm galvanized pipe , then another tubular frame from a 14mm pipe is welded into these frames. On both leaves, there are welded eyes from the visible side "from the street" and a plug on the left leaf from the inside. Subsequently, the entire frames are high-quality polyurethane plasticized in the color RAL 6005 - fir green . Then the inner frame of the leaves is woven and sewn with a 4-sided classic EXTRA mesh made of solid wire 2.7mm.

* Goal posts: 2 pcs of hinged posts are made of 60mm pipe, 2.5mm walls. The posts are approx. 50cm longer for concrete than the height of the goal (dig a hole for the post approx. 80-90cm, fill the lower half with concrete, compact it and then insert the post. For reinforcement, you can push a roxor, nail, wire, etc. across the post, which will prevent the post from rotating in the concrete, Supplied including top caps

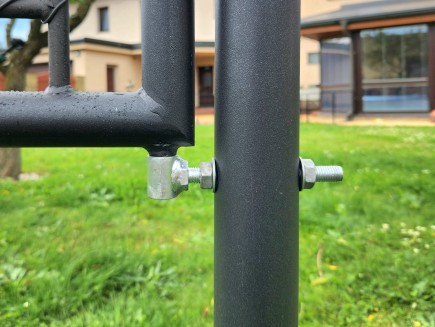

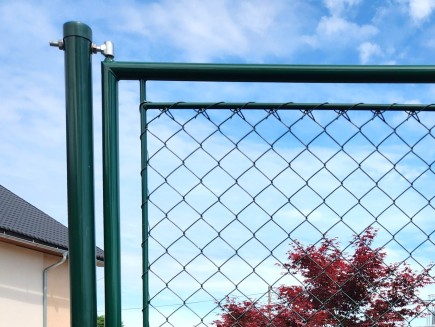

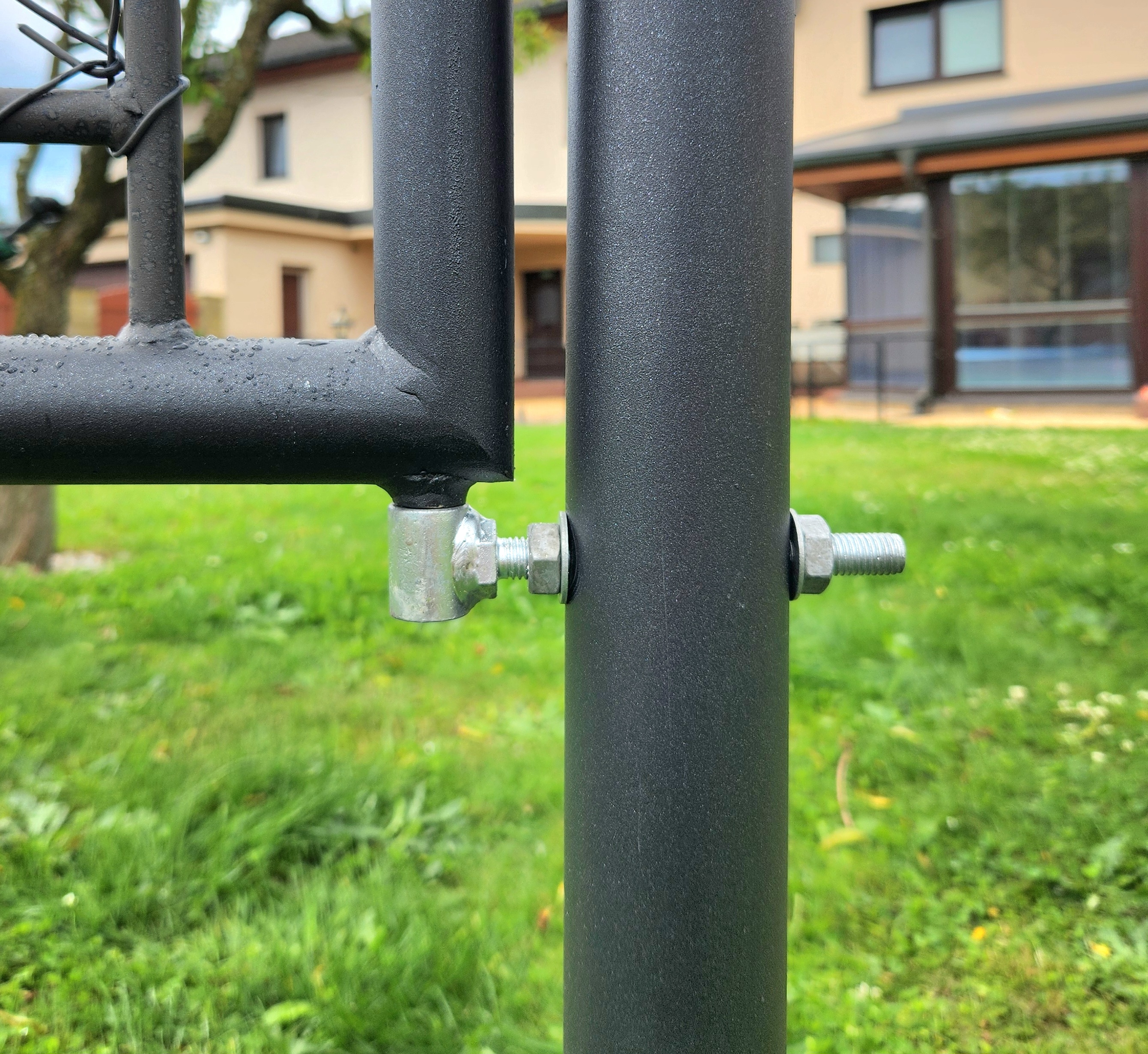

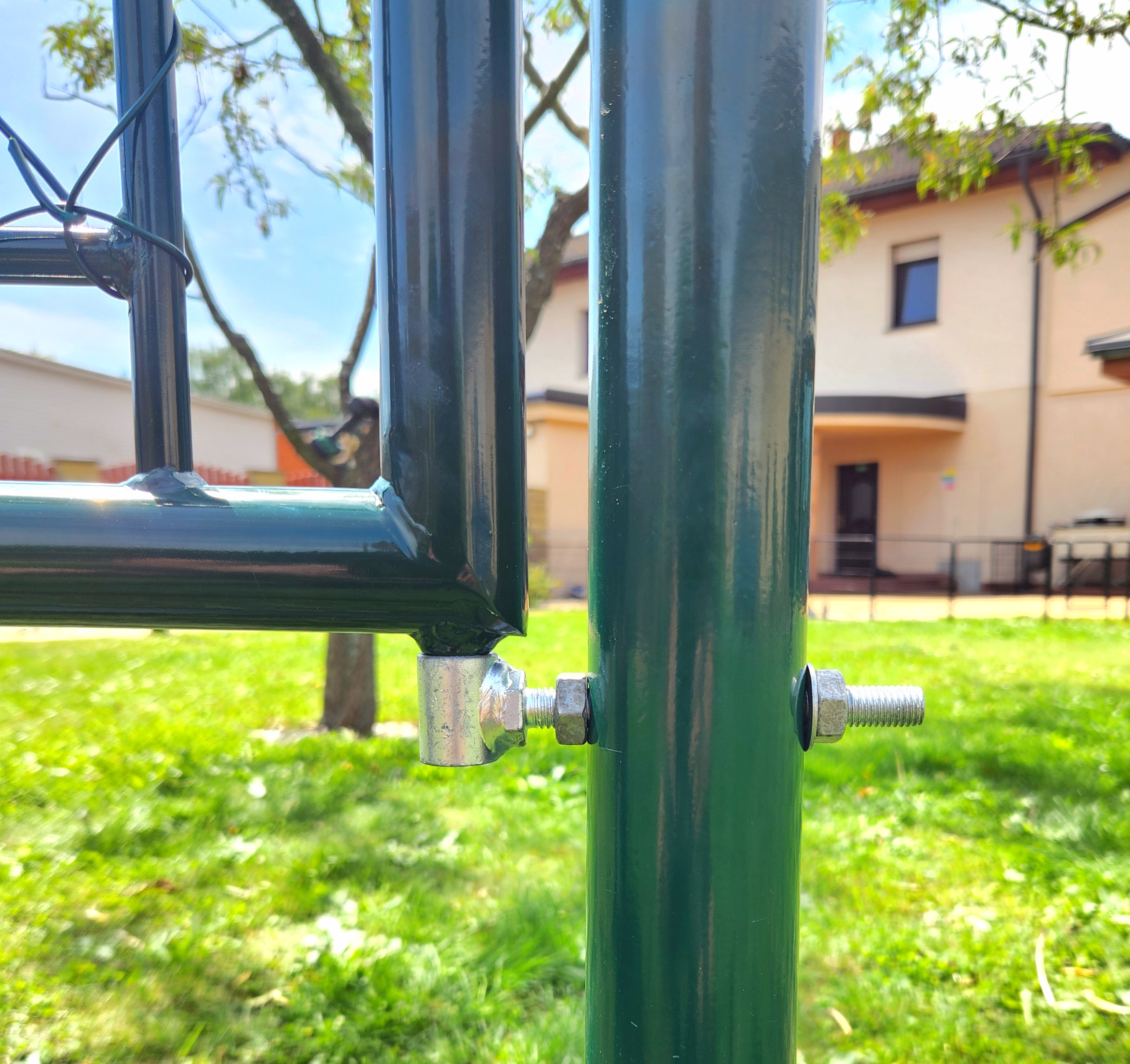

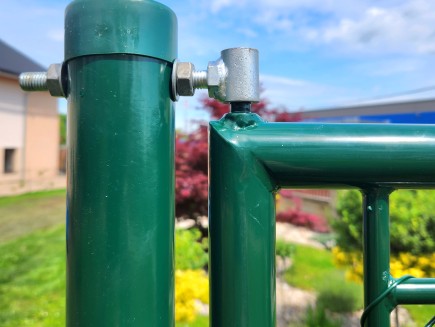

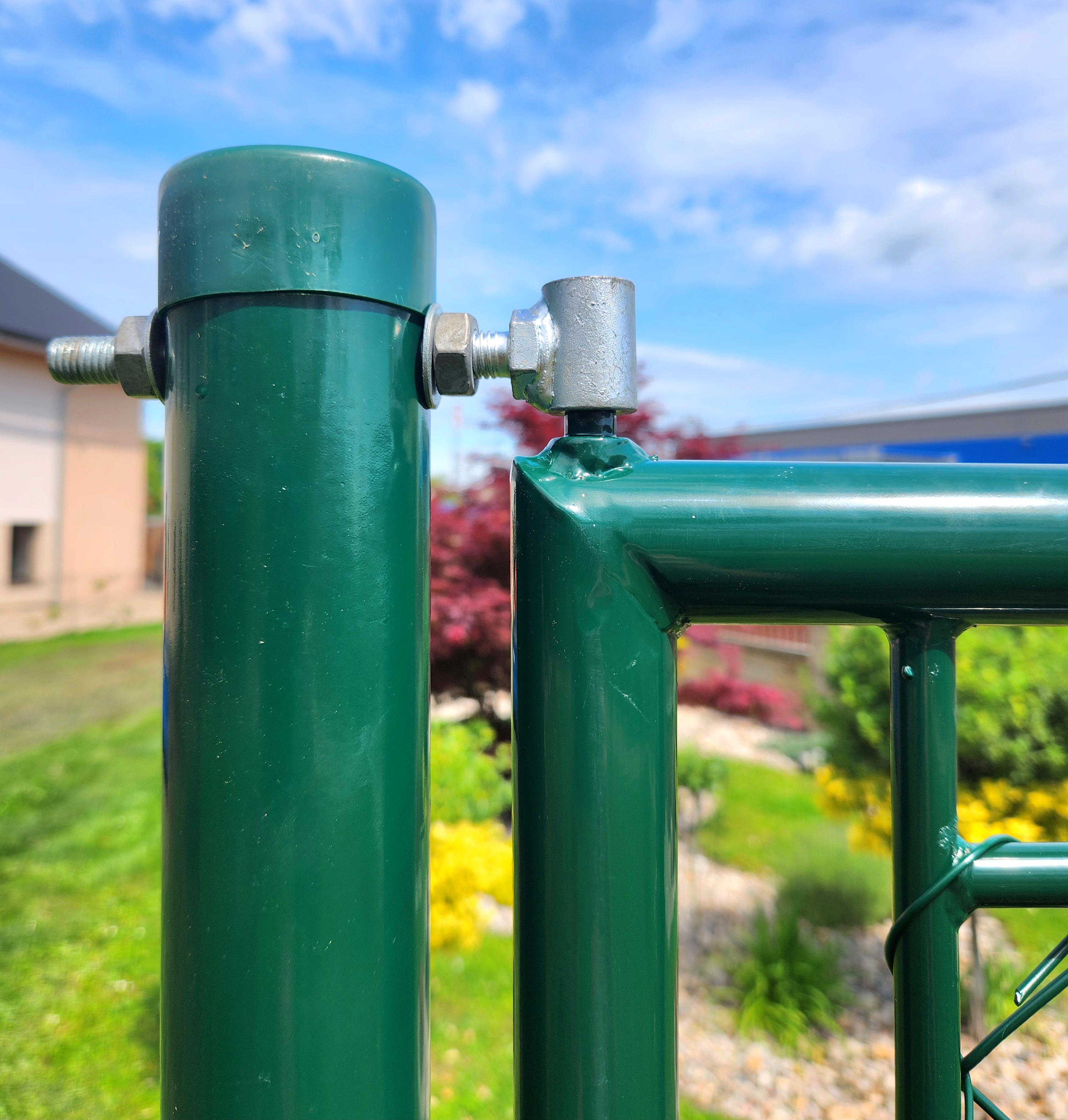

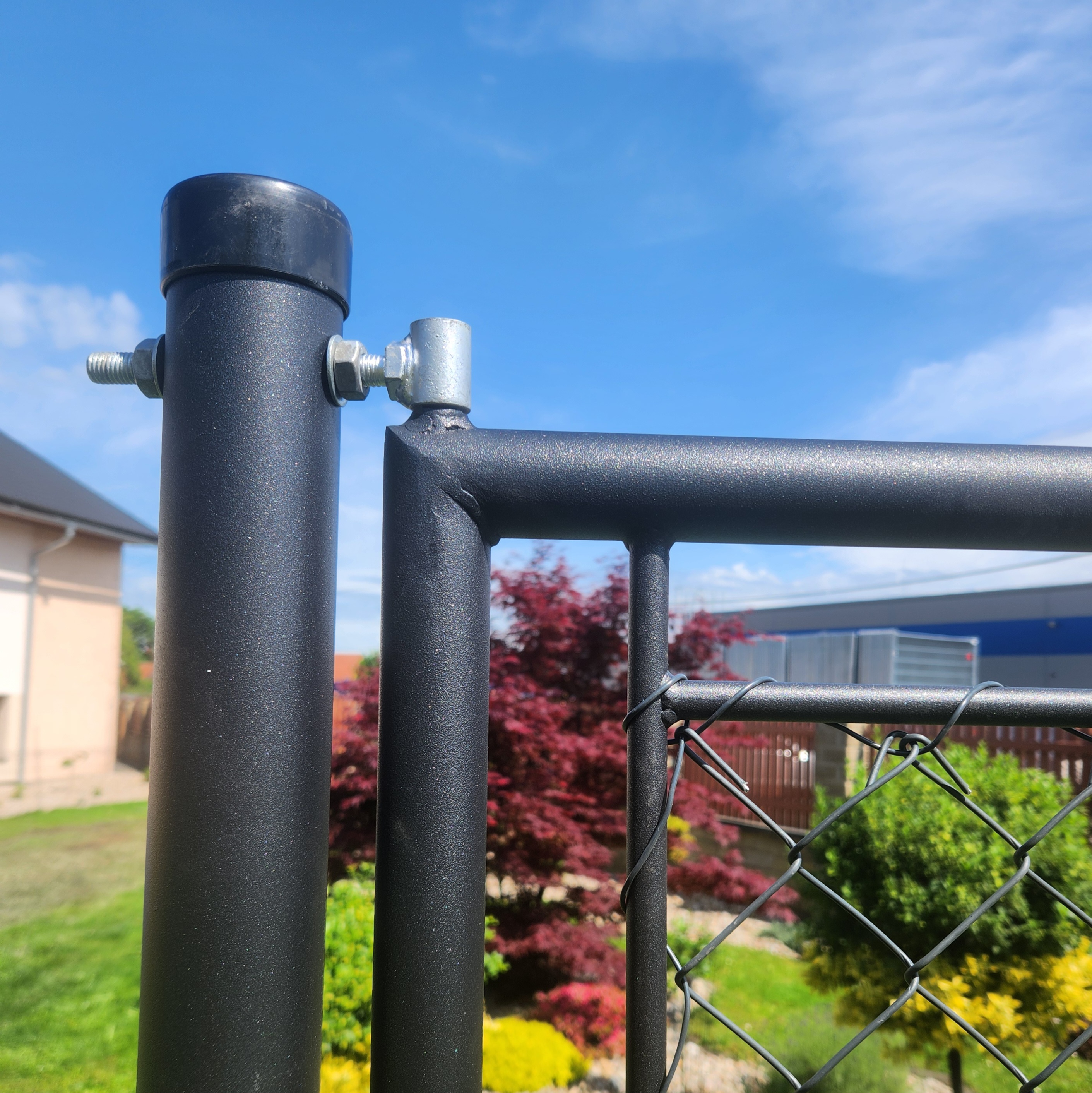

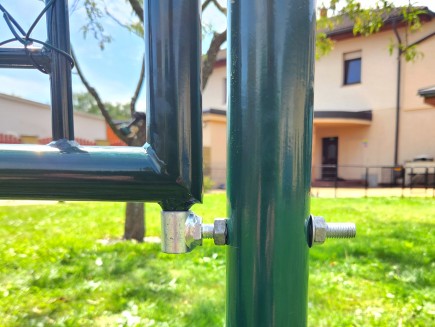

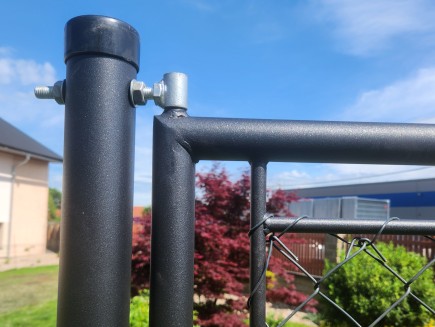

* Gate accessories: a set of upper and lower adjustable hinges for each post, which you can easily adjust the exact position of the gate wings, as well as all fasteners - all in a maintenance-free design . The gate includes schematic assembly instructions for easy assembly and installation.

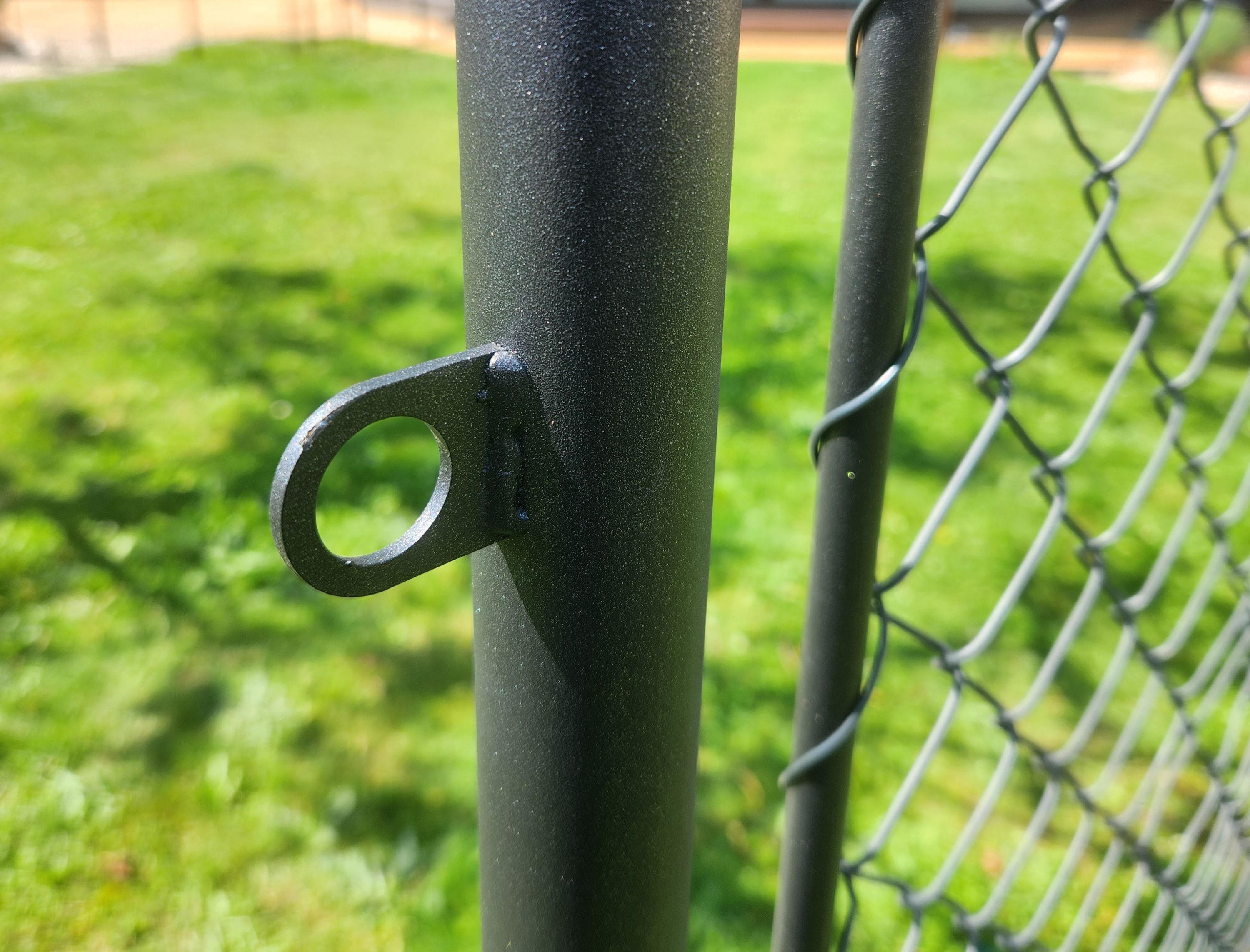

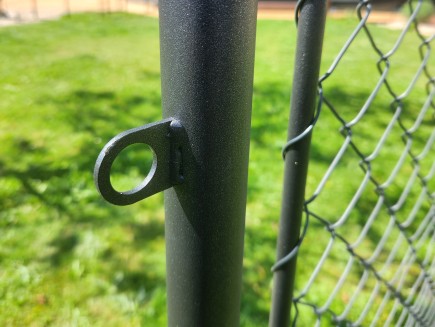

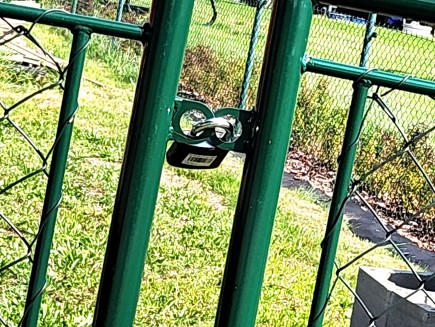

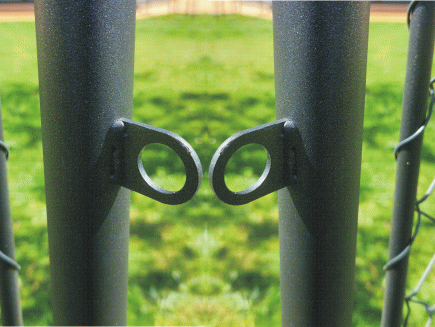

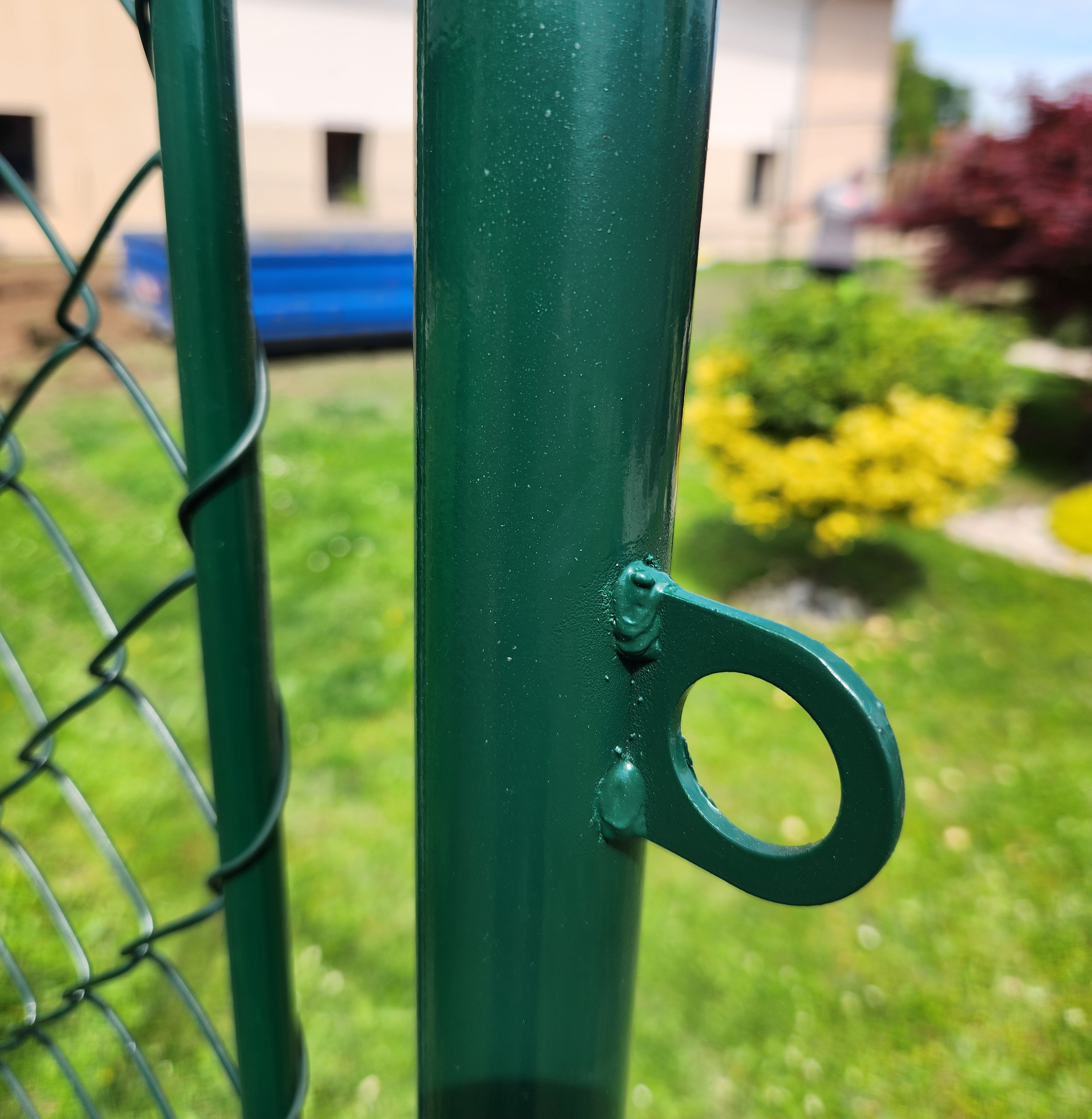

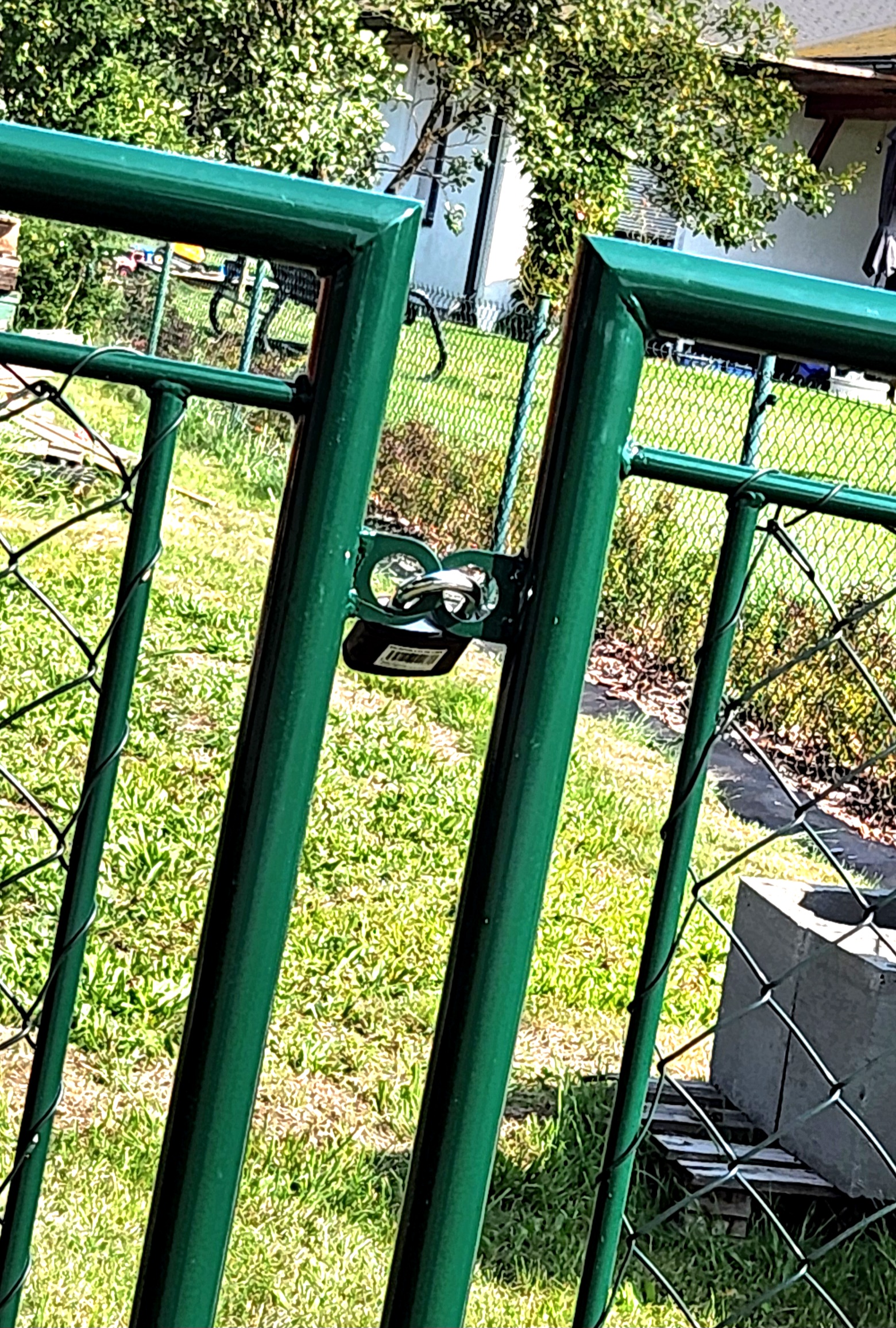

The left gate leaf, when viewed from the street , is secured against unintentional opening by a plug ("slide", locking pin), which ensures arbitrary movement of the leaf, for example, in the wind. Welded eyes are used to lock the leaves together, into which the padlock shackle is threaded and the gate is locked "from the street side". The opening angle of the gate leaves is approx. 130°. Our tip! If you intend to lock the gate from the inside, purchase 2 eyelets for the gate , which you screw onto the frame of the leaves from the inside and you can lock the gate from the property.

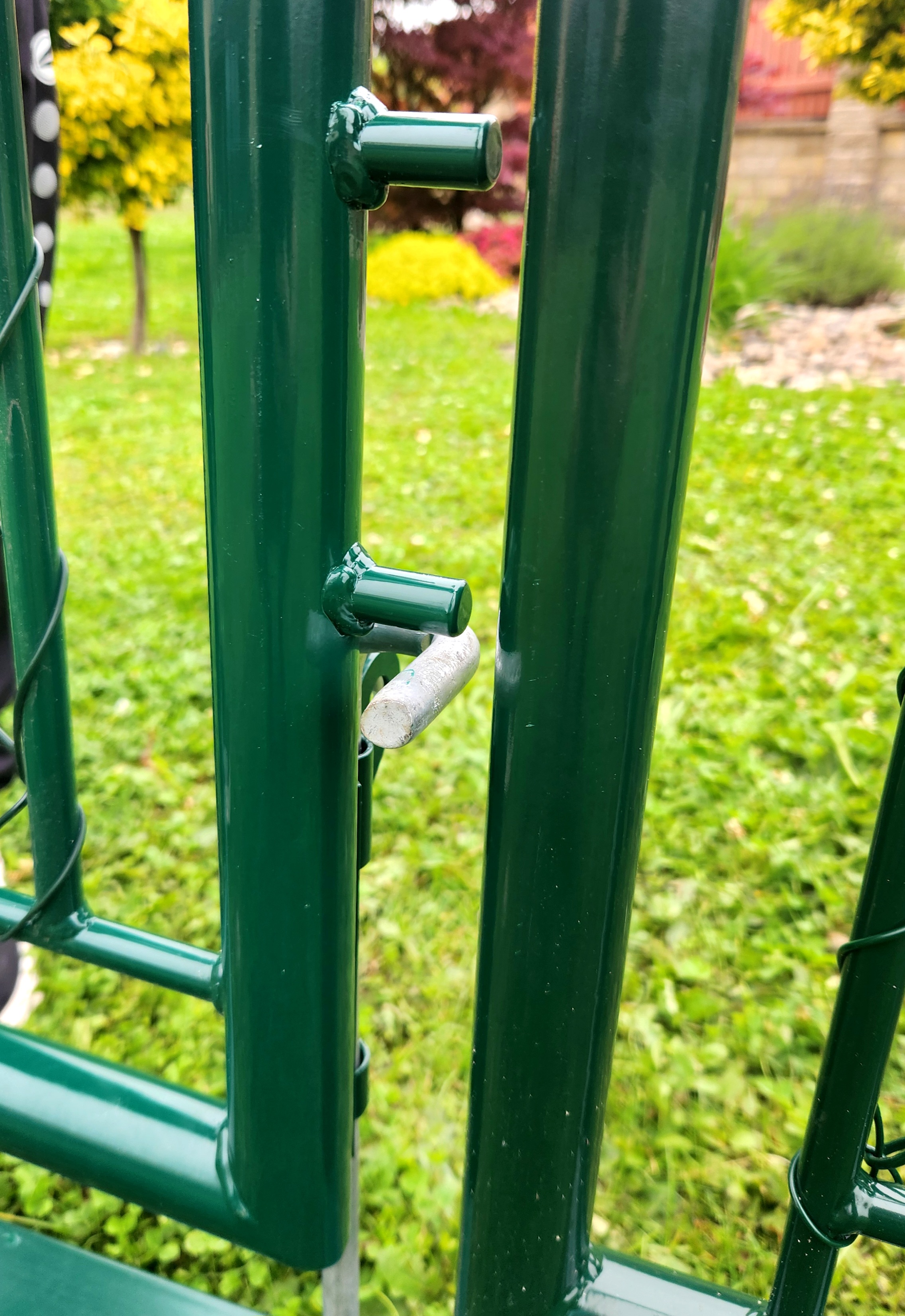

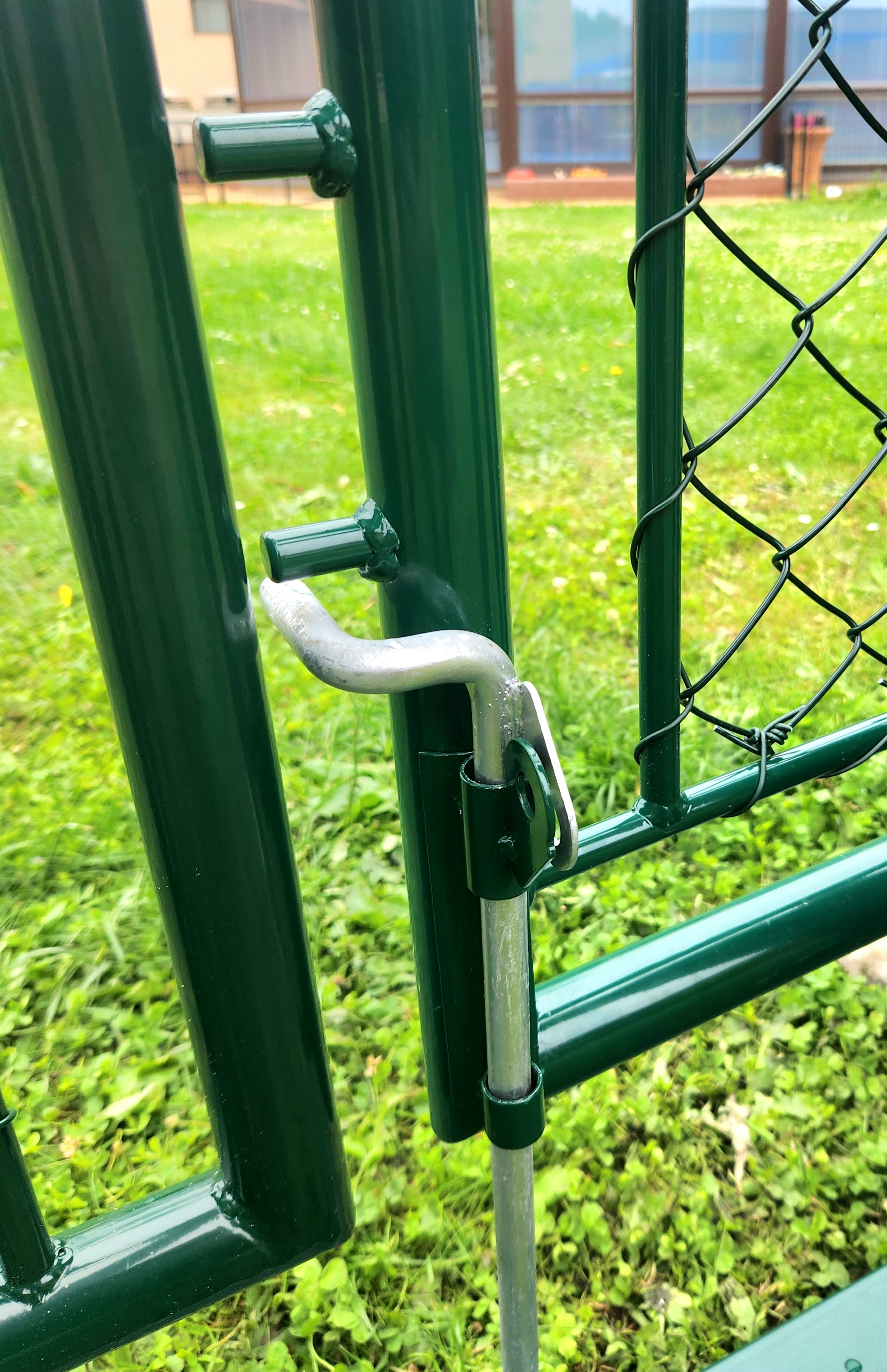

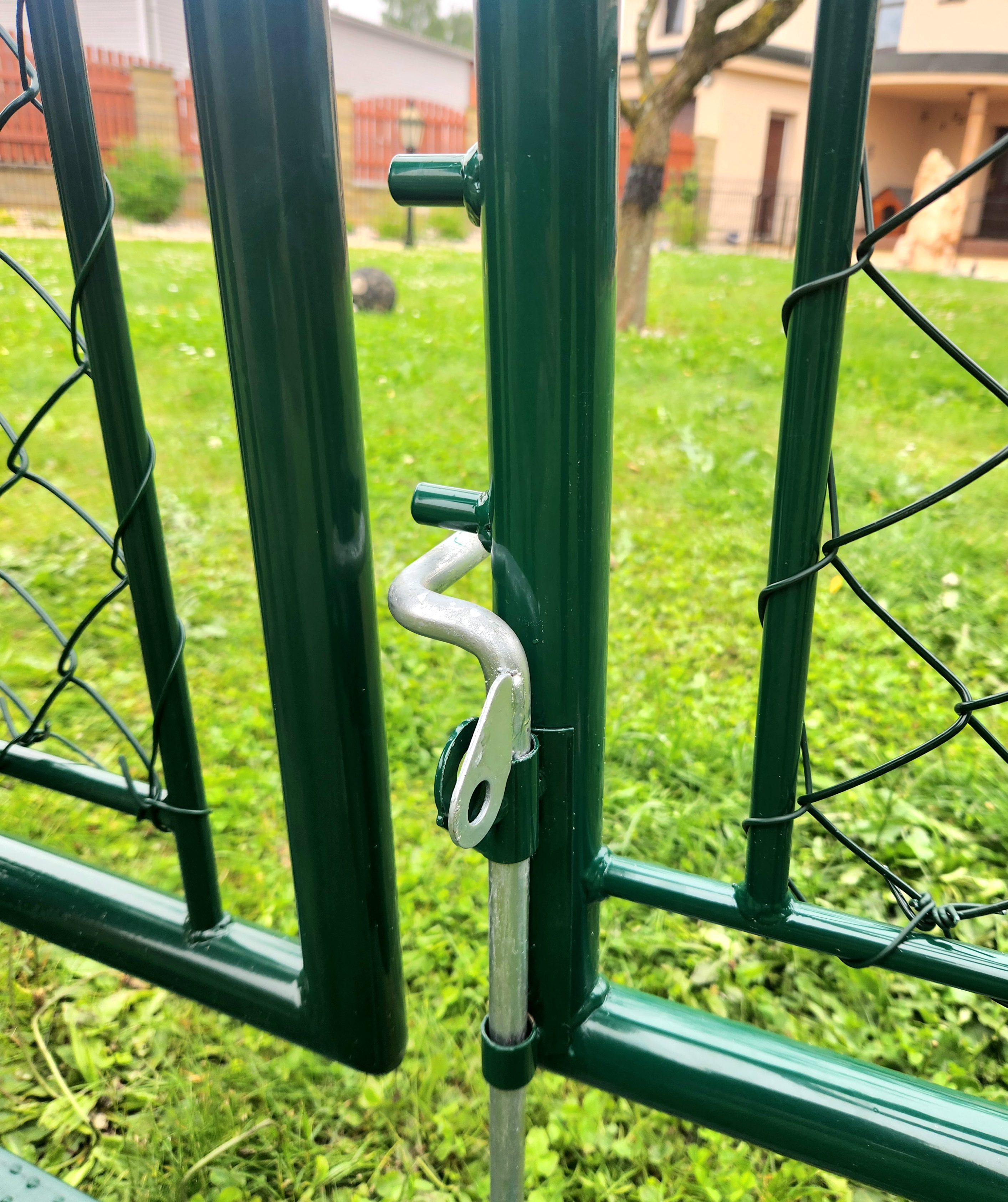

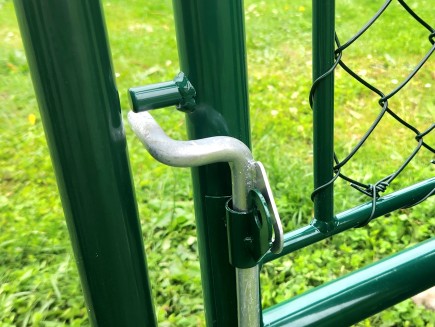

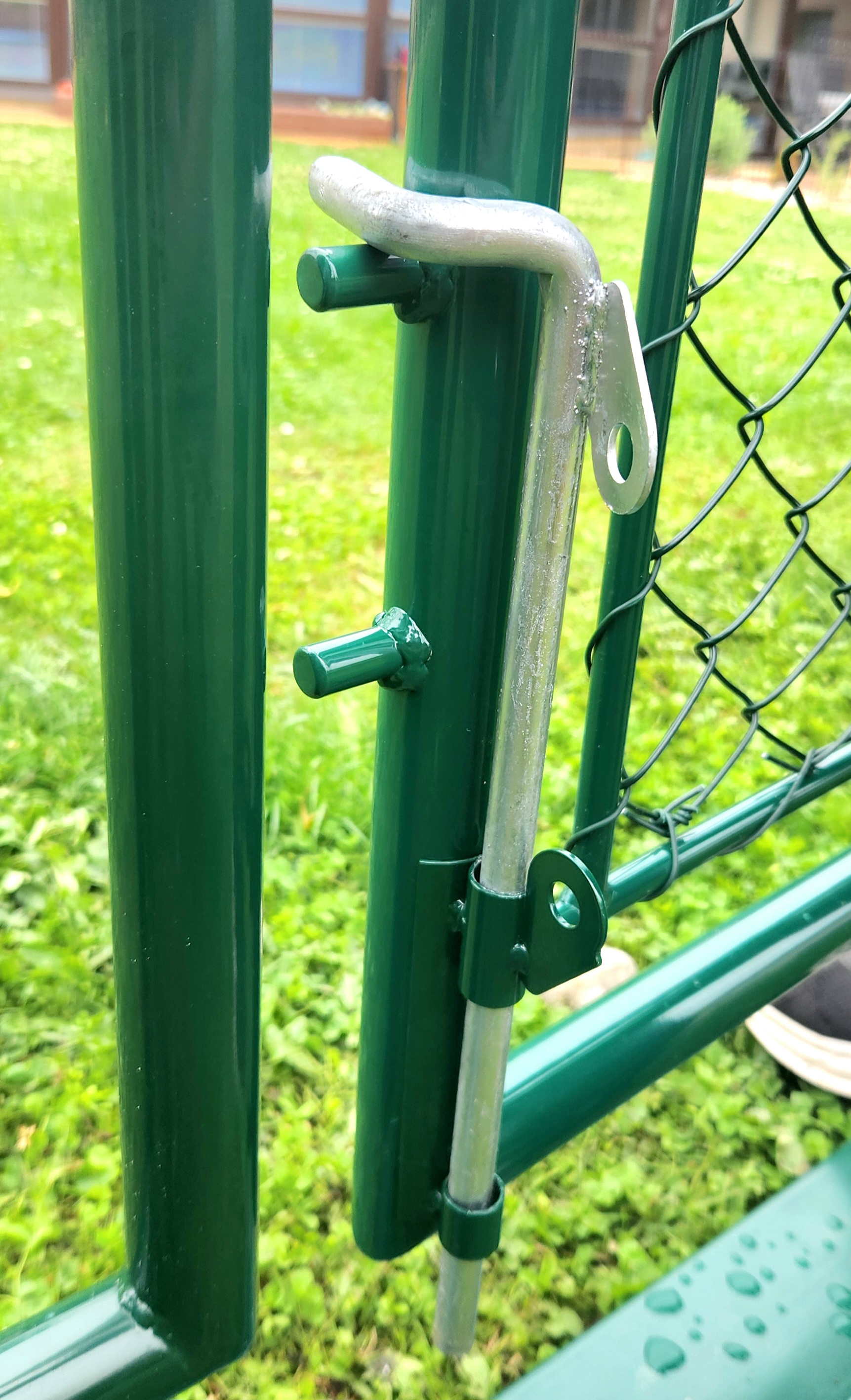

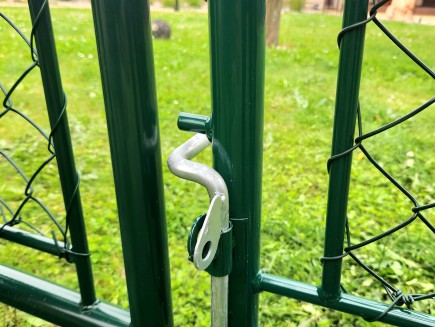

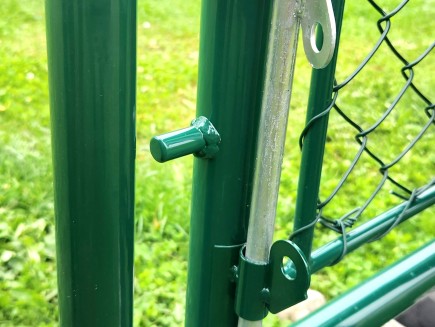

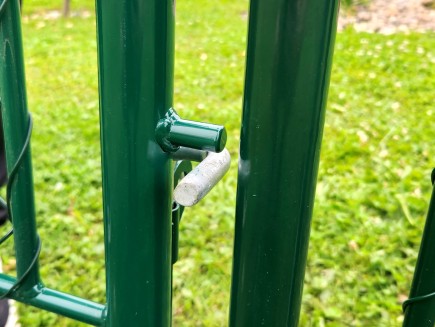

The "slider, bolt" plug is a ground rod designed so that when locked, it is not possible to pull the plug out of the ground and open the gate by breaking the wings. Only after unlocking the padlock between the wings and opening the wing (at least by approx. 10cm) can the plug be turned 90°, lifted and opened the second wing. There are 2 rollers on the gate frame, the lower one serves as a barrier against lifting the holder in the locked state, the upper one serves to put the plug away when open. The advantage of this plug is that you only need one padlock for the gate leaf eyes to lock it and you do not need any other (padlock) lock to secure our 2-wing gate. However, if you want the bolt to be locked, you can also lock the plug with a padlock, as there are padlock eyes on the gate and the bolt. This years-tested plug is protected by our patent design and is only available on our gates.

We recommend that the goal is always braced on both goal posts. The braces are attached to the goal posts using a 60mm sleeve . The installation of the 4-sided (classic) mesh on the goal post is done by sewing the post with binding wire .

You can order a color version other than fir green (e.g. a different finish, color, size) in the modification menu.

In addition to this offer, you can configure any size or design of the gate or gate yourself and find out the production price immediately in our online calculator . The production time for atypical gates usually takes 10-14 days, depending on the complexity of the design. In the atypical products section, we bring you a photo gallery of custom-made gates, wickets and sliding gates.

We can deliver this product to you for free or you can pick it up in person in Vamberk , Tymákov , Telč or Vsetín .

Our tip for a very simple and problem-free installation that anyone can do without the need to measure anything precisely during installation. ** Drill or dig holes for the posts (to a depth of 80-90cm and of the appropriate diameter), ** Assemble the entire assembly lying down, e.g. on mowed lawn, cardboard, carpet, etc. (insert the wings into the hinges, screw the hinges into the posts, etc....). ** Place the roof battens over the entire assembly over the upper hinge and approx. 10cm above the lower hinge and secure everything with, for example, plastic zip ties and thus firmly fix the entire gate and the posts. ** Place 5cm high blocks between the dug holes, which will define the gap between the paving and the bottom of the gate frame. ** Pour concrete to approx. 1/3 of the depth of the dug holes and compact it. ** Grab the ends of the battens and insert the fixed gate with the posts into the dug holes and concrete the entire fixed assembly to the surface of the ground. ** Let the concrete harden. ** Then use adjustable hinges to fine-tune the precise spacing between the wings and posts. The advantage is that this way you cannot make a mistake in the spacing and depth when concreting the posts and you are guaranteed to be able to install the gate or gate easily and accurately.

Why choose gates and wickets from us? Consider this overview for yourself.
There are several manufacturers and especially importers of gates and wickets from Asia and India in the Czech Republic. We are Czech manufacturers and gate experts with an annual production of over 20 thousand. wings and we would like to provide you with truthful information and differences:
Plastic coating : We – Exterior UV stabilized polyester with pre-treatment / Competition only powder coating
Frame profiles: We – hot-dip galvanized tubes 38mm, wall 1.2mm / Competition only thin tubes 1.0mm
Mortise lock pocket: We – a solid all-metal pocket made of one piece (no folded sheet metal that rains into) in which there is a full-fledged reliable mortise lock. Competition: cheap design (no pocket, a simple Asian mechanism is in the body of the post)
Goalposts: We – 60mm, wall 2.5mm / Competition thin-walled pipes max. 1.5mm
Lock mechanism: We – full-fledged mortise lock in a sheet metal pocket / Competition – unsightly non-functional Asian tapered lock in a tube
Handle: Us – stainless steel handle worth 500 CZK / Competition – cheap plastic Asian handles
Mesh: We – high-quality mesh made of 2.7mm wire / Competitor – mesh with 55m mesh, weak wire, cheap version
Packaging: We – high-quality, entire frame wrapped in miralon / Competition – only in plastic
Gate production: We – in the Czech Republic in our workshops / Competition: Asia
Variability: We – dozens of string variations, sizes thanks to the modification button / Competition: Only the specified size made in Asia
Hinges: We – solid, pass-through, strong hinges M12 / Competition: cheap, weak hook hinges
Price: We – production costs, salary of Czech workers, plasticizing and distribution / Competition: production costs, salary of Asian workers, costs of sea transport around the world
Repairs and complaints: Us - components are from the Czech Republic, easy availability / Competition: no Asian replacement parts - throw them away if damaged.
Choose Czech quality, long-lasting premium products with a guarantee from a Czech company.

We can deliver this product to you for free or you can pick it up in person in Vamberk , Tymákov , Telč or Vsetín .

NEW MODEL - CLASSIC PLUS
For this year, we have improved the production program of KLASIK gates with the following modifications:
- the steel frame is now made for the long-term life of the gate from galvanized pipes !!!
- the top coating is now carried out using the top two-component polyurethane paint technology, - comparable to plastic coating, which, compared to synthetic coating, better withstands weather conditions, especially frost and UV sunlight, and does not fade
- adjustable hinges are now a more robust design
- the gate now includes schematic assembly instructions for simple assembly and assembly.
